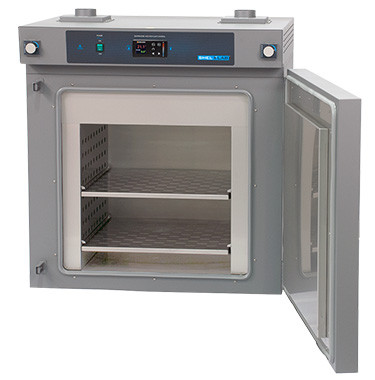

SHEL LAB® SMO5HP-2 HIGH PERFORMANCE OVEN, PROGRAMMABLE HORIZONTAL AIR FLOW, 4.9 CU FT, 230V

SHIPS VIA FREIGHT (charges apply). Built-to-order, ships in ~6 weeks from order placement. View Spec Sheet



The SMO5HP-2 has rugged, welded construction with a double-walled, corrosion-resistant stainless-steel interior and a powder-coated exterior.

SHEL LAB High-Performance Ovens are engineered to meet the most critical temperature requirements. They are designed for continuous drying operations at temperatures up to 306°C. User-Adjustable integrated overtemperature protection prevents control failure from damaging contents and guards against burnout. The Watlow PM9 PLUS controller provides a 4x10 step heat up and soak capability, 1°C control, and multiple levels of operator access and security. Process temperature and setpoint are displayed in dual three-digit LED readout for fast and accurate setting.



Horizontal airflow ensures uniform heating profiles and powerful heating elements provide fast heat-up and recovery to ensure rapid drying. Heated air is continuously circulated by single turbo blowers. Blowers also circulate air around motor bearings to prolong motor life. Punched stainless steel shelves are height adjustable. Adjustable three-inch diameter air intake and exhaust ports can be opened for fast drying of high-moisture content samples.



The 3.5-inch-thick wrap-around fiberglass insulation on all sides minimizes heat loss and improves electrical efficiency.  A high-temperature gasket door seal eliminates air leakage and ensures longer gasket life while being subjected to extreme operational temperatures. These units include long-lasting, low-watt density heating elements for responsive temperature control without risking overshoot. It also has adjustable heavy-duty hinges and camming door latches that are designed for lifetime service.



SHEL LAB ovens are available in a broad array of sizes, styles, and technology. Features:
