SHIPS VIA FREIGHT (charges apply). Built-to-order, ships in ~6 weeks from order placement.
These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning, and life cycle testing.

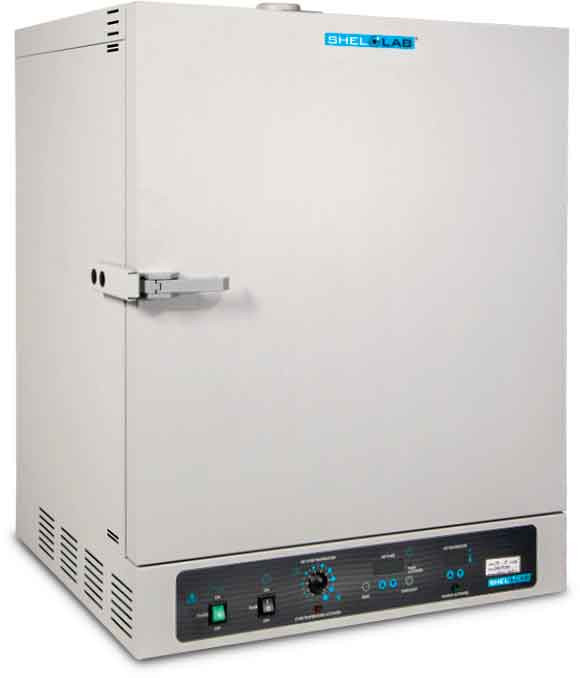

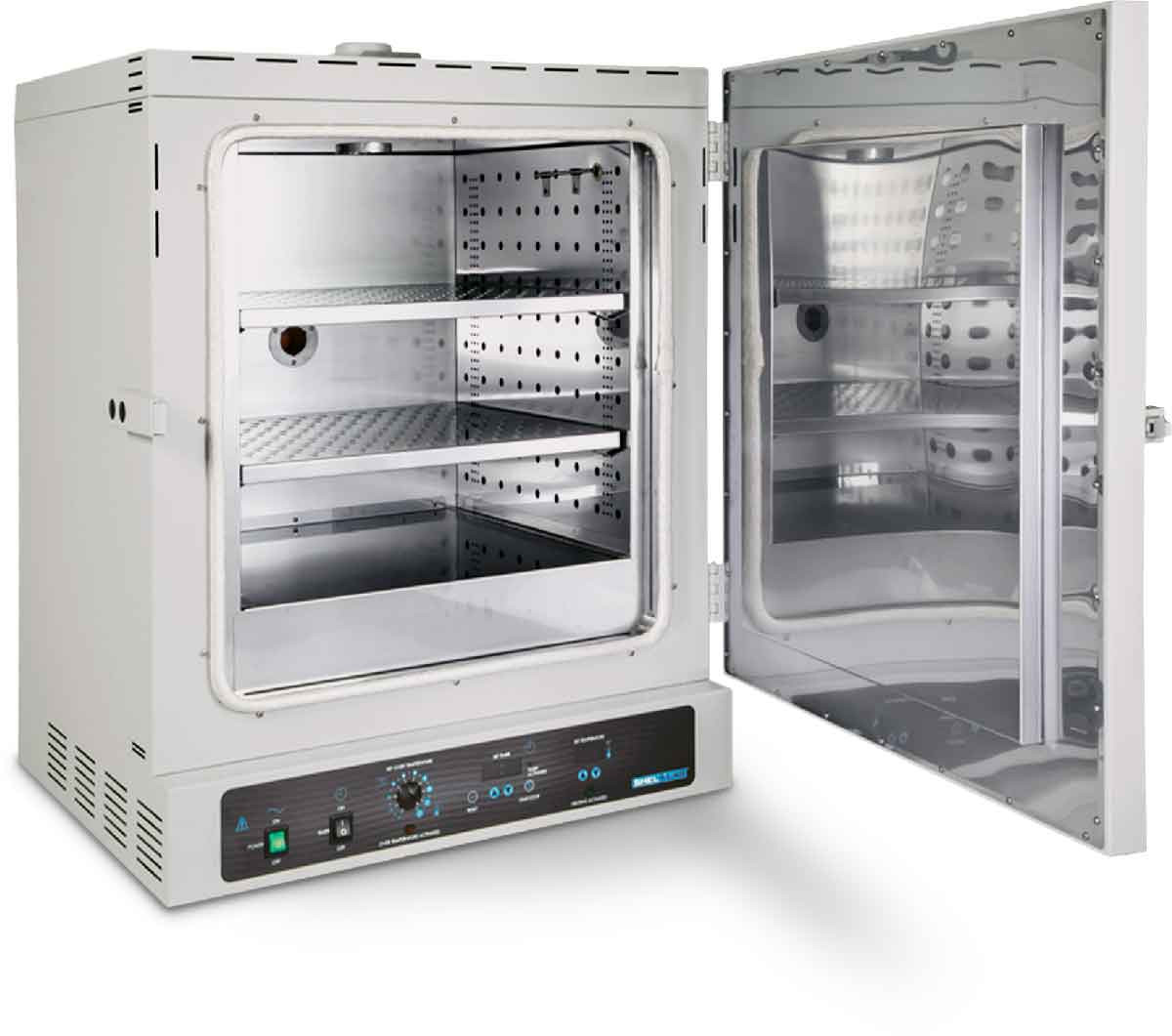

This unit has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response. The SMO5 forced air oven delivers precise uniformity, air distribution, and the peace of mind expected of the SHEL LAB brand.
Features of this oven include:
- Embedded Microprocessor Control with Countdown Timer
- Horizontal Forced Airflow
- 1.75in (45 mm) Access Port
- UL/CSA Approved
- CE Approval
- DIN 12880 Compliant
- 24 Month Limited Warranty
EXTERIOR DIMENSIONS (W × D × H)
31.4 × 28.1 × 38.8
(798 mm × 714 mm × 986 mm)
INTERIOR DIMENSIONS (W × D × H)
21 × 19.4 × 20.7
(533 mm × 494 mm × 527 mm)
VOLUME
4.9 cu.ft. (138.0 L)
SHELF DIMENSIONS (W × D)
20.6 × 18.8 (523 mm × 478 mm)
UNIT WEIGHT
208.0 lbs (94.3 kg)
INTERIOR METAL
430 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +20C - 306C
TEMPERATURE UNIFORMITY - MIDRANGE
1.8 °C
TEMPERATURE STABILITY - MIDRANGE
0.3 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 14.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
