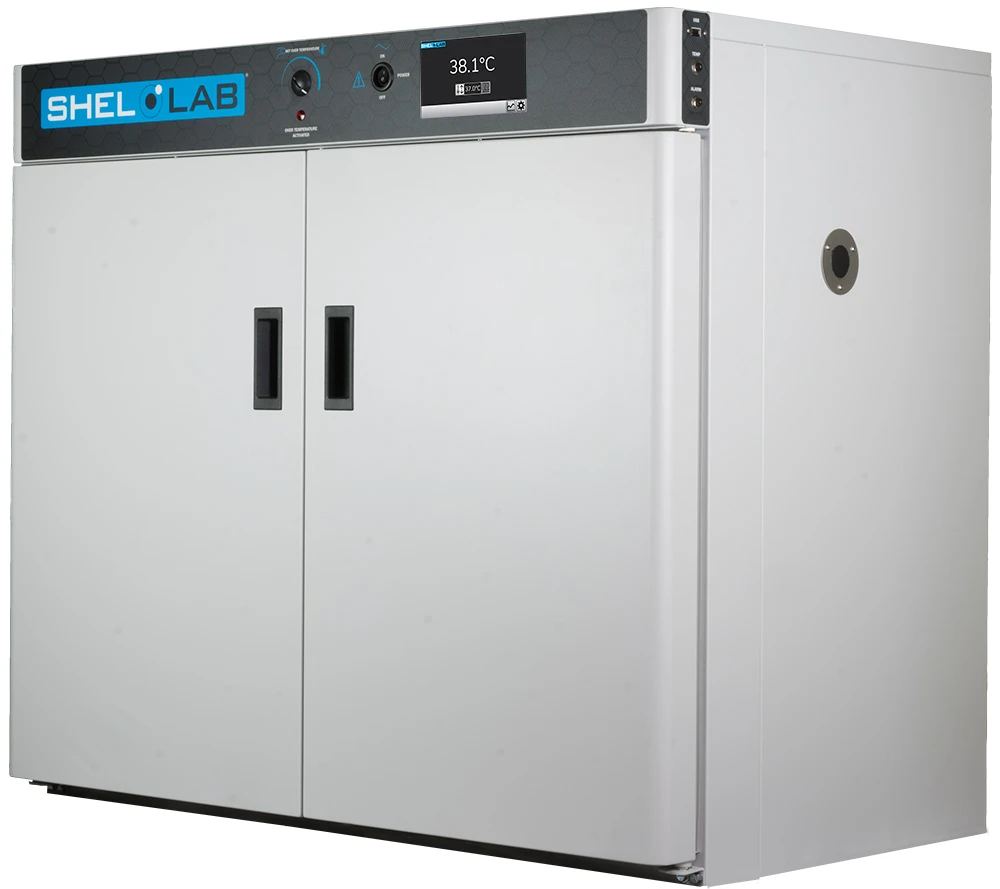

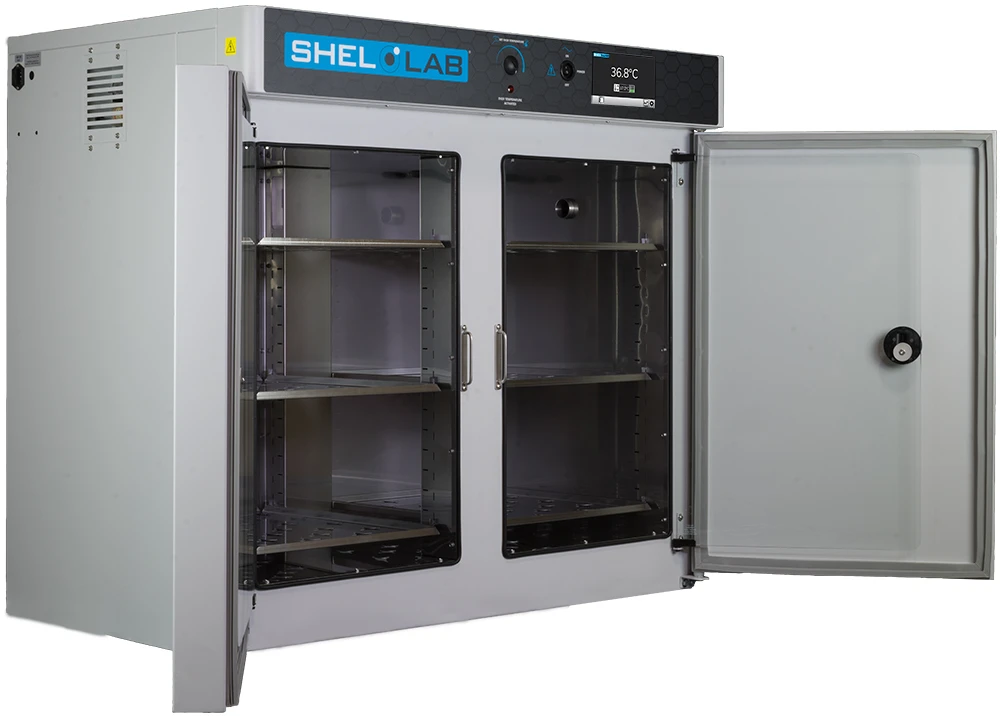

The SHEL LAB Microbiological Incubator Series has been redesigned for optimum performance. Ranging in size from 2 to 11.7 cubic feet (57 to 331 liters), the SMI Series will fit any workspace.
- Improved real-time clock accuracy
- Updated screen color theme from blue to black
- New access points for setpoint, alarms, and datalog export
- Replaced some text items with screen icons for better clarity
Significantly updating SHEL LAB’s Microbiological Incubators, the new 7-inch display provides advanced control functions. With on-screen graphing and real-time data, the new SMI controller provides the highest levels of sample security and traceability.
More features of the SMI incubators include:
- 7” capacitive touch screen usable with laboratory gloves
- Real-time clock for logging events
- Door alarm
- On-screen data graphing
- 4-20ma output for a chart recorder or central facility recording
- Interior outlet
- Viewing door
- Stainless steel interior
- 24 month limited warranty
EXTERIOR DIMENSIONS (W × D × H)
42 × 27 × 38
(1067 mm × 686 mm × 965 mm)
INTERIOR DIMENSIONS (W × D × H)
36.2 × 20 × 26
(920 mm × 508 mm × 660 mm)
VOLUME
10.9 cu.ft. (309 L)
SHELF DIMENSIONS (W × D)
15.1 × 18.5 (384 mm × 470 mm)
UNIT WEIGHT
217.0 lbs (98.5 kg)
INTERIOR METAL
430 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +8C - 70C
TEMPERATURE UNIFORMITY - MIDRANGE
0.5 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
100-120 VAC, 50/60 Hz, 10.0 Amps
MAX HVAC LOAD
2374 BTUs/hr
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
