SHIPS VIA FREIGHT (charges apply). Built-to-order, ships in ~6 weeks from order placement.

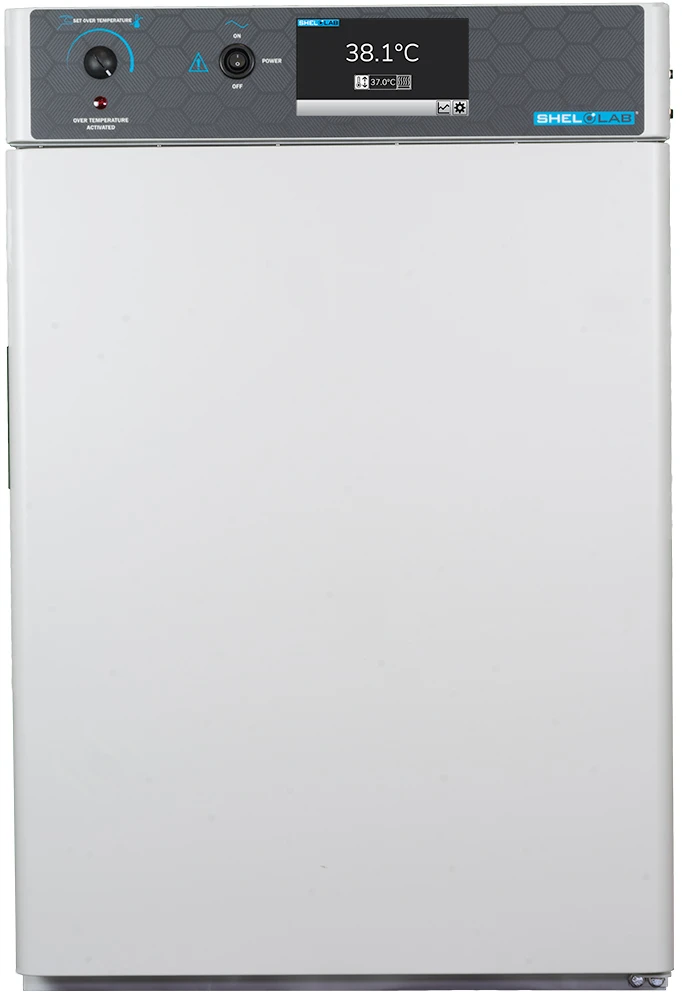

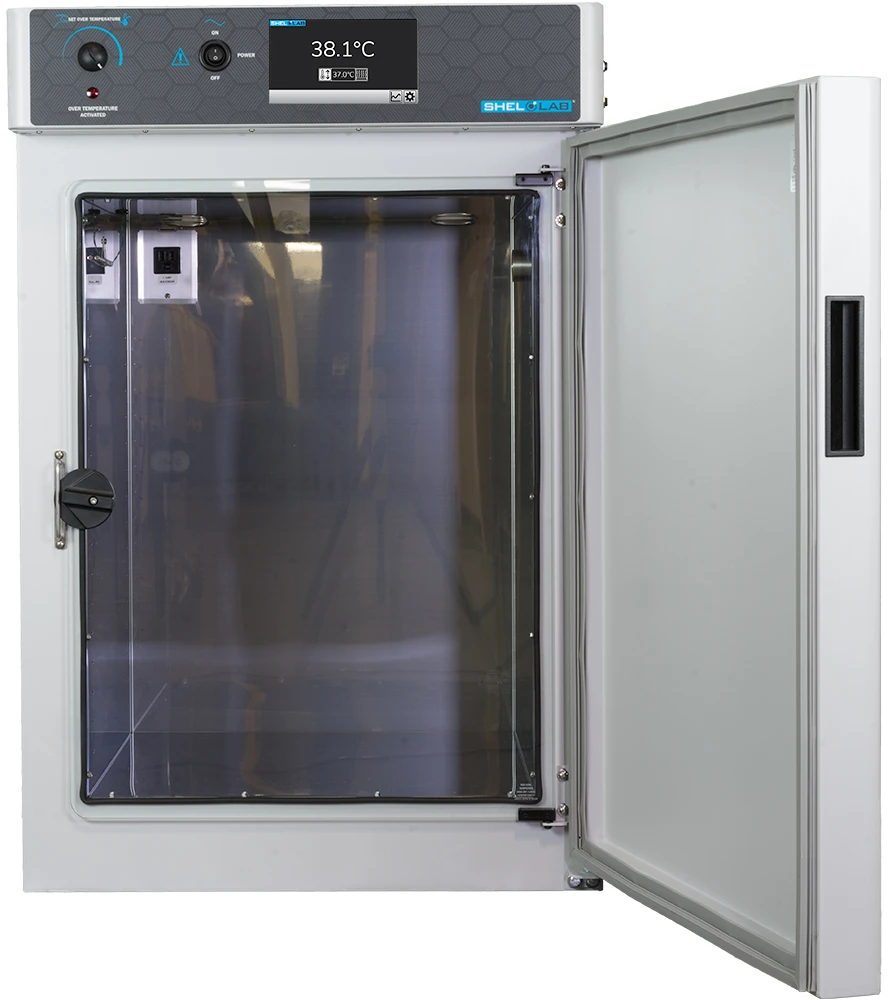

View Spec SheetSMI6 SHEL LAB Microbiological Incubator is 5.9 cubic feet (166 L). This unit is perfect for general cell culture and constant temperature applications.
The SHEL LAB Microbiological Incubator Series has been redesigned for optimum performance. Ranging in size from 2 to 11.7 cubic feet (57 to 331 liters), the SMI Series will fit any workspace.
NEW – Touch Screen Updates
The SHEL LAB SMI Series touch screen user interface received a complete overhaul!
Now featuring:
- Improved real-time clock accuracy
- Updated screen color theme from blue to black
- New access points for setpoint, alarms, and datalog export
- Replaced some text items with screen icons for better clarity
Significantly updating SHEL LAB’s Microbiological Incubators, the new 7-inch display provides advanced control functions. With on-screen graphing and real-time data, the new SMI controller provides the highest levels of sample security and traceability.
More features of the SMI incubators include:
- 7” capacitive touch screen usable with laboratory gloves
- Real-time clock for logging events
- Door alarm
- On-screen data graphing
- 4-20ma output for a chart recorder or central facility recording
- Interior outlet
- Viewing door
- Stainless steel interior
- 24 month limited warranty
EXTERIOR DIMENSIONS (W × D × H)
25.3 × 27.3 × 38.0
(643 mm × 693 mm × 965 mm)
INTERIOR DIMENSIONS (W × D × H)
19.5 × 20.0 × 26.0
(495 mm × 508 mm × 660 mm)
VOLUME
5.9 cu.ft. (166 L)
SHELF DIMENSIONS (W × D)
18.3 × 18.3 (465 mm × 465 mm)
UNIT WEIGHT
158.0 lbs (71.7 kg)
INTERIOR METAL
430 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +8C - 70C
TEMPERATURE UNIFORMITY - MIDRANGE
0.5 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
100-120 VAC, 50/60 Hz, 6.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
