Product Description

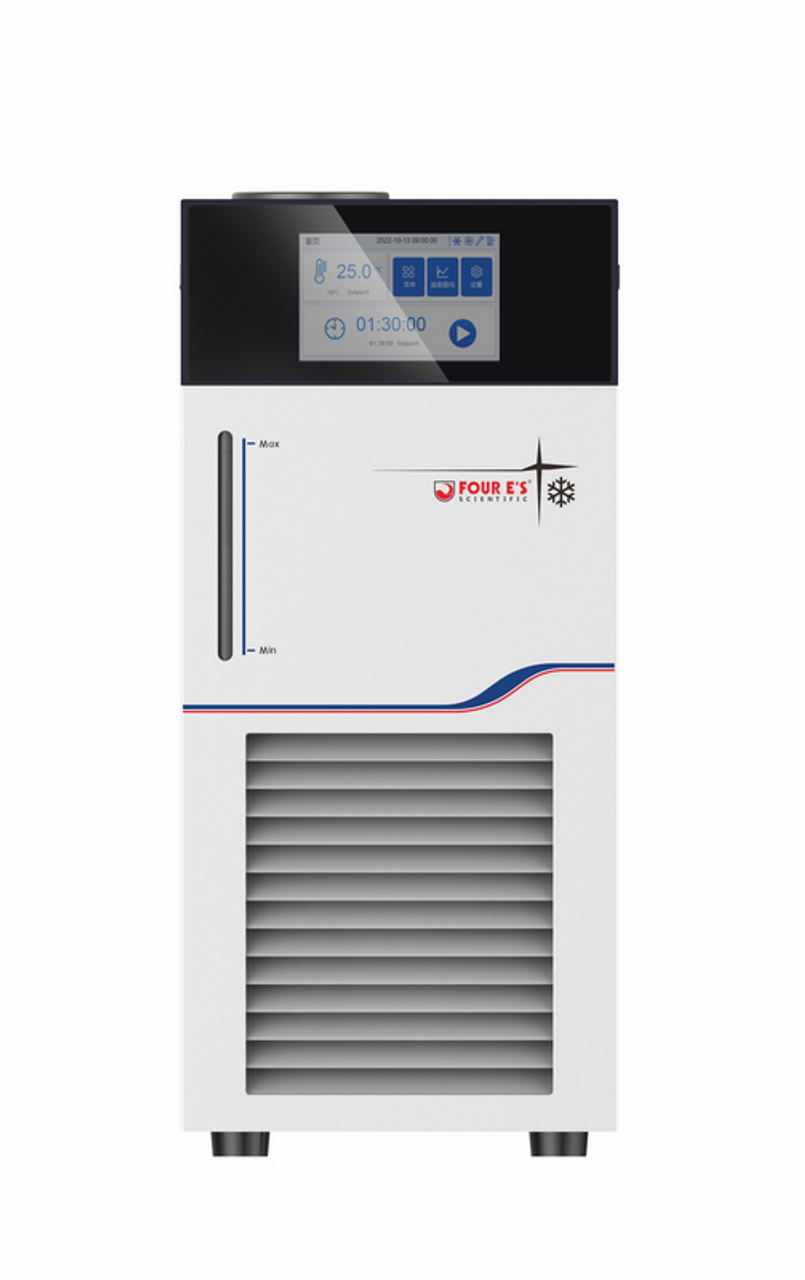

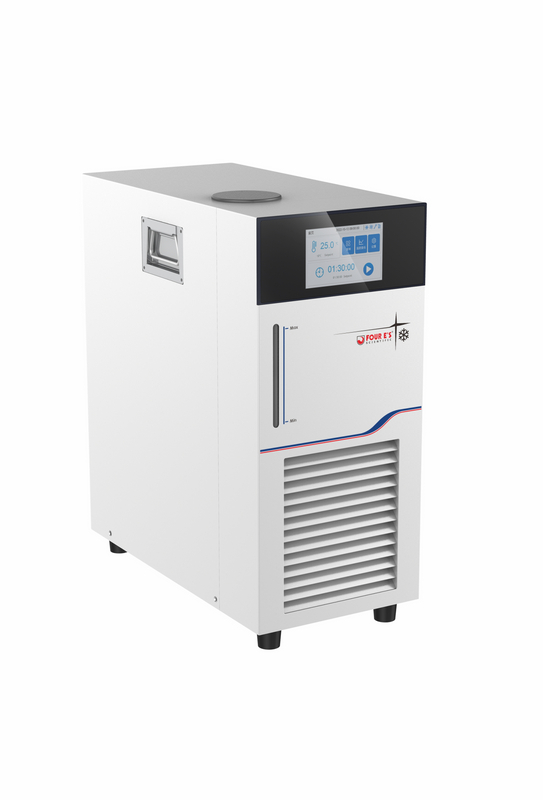

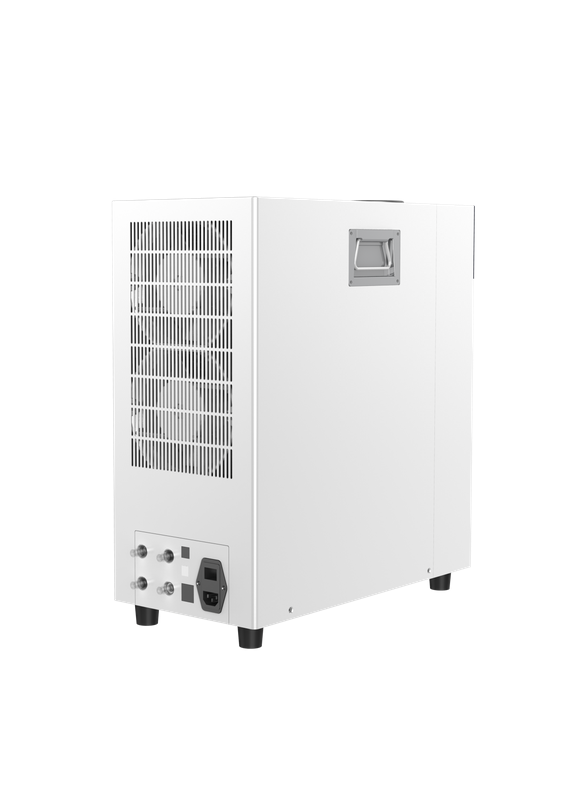

Recirculating Chiller (to be used with 4E-RV131)
Recirculating Chiller CH800 provides an economic and environmentally friendly cooling solution for many laboratory applications. With precise temperature control, the device achieves excellent temperature stability and is suitable for a wide range of applications including cooling of rotary evaporators, reactor blocks, vapor barriers, or heat exchangers.
The chiller, also known as recirculating chiller, is a cooling device that provides a continuous supply of water at a constant temperature and pressure. It cools water through the cooling system, delivers cool water to the equipment required via pump to remove heat and flows back to the bath.
Specifications
| Model | CH800 | |
| Working temperature range | -20°C RT | |
| Cooling capacity | @20°C | 750W |
| @10°C | 650W | |
| @0°C | 500W | |
| @-10°C | 400W | |
| @-20°C | 200W | |
| Time to cool from RT (25°C) down to -20℃ | ≤30min | |
| Pump Flow Max. | 22 L/min | |
| Pump pressure Max. | 1 bar | |
| Bath volume | 5 L (max storage 5.3L) | |
| Temperature stability DIN 12876 | ±0.3 K | |
| Temperature Display Accuracy | ±0.3°C | |
| Refrigerant | R290 | |
| Power supply |
100-120VAC/200-240VAC; 50Hz/60H |
|
| Wattage | Max 750W | |
| Weight | ≤35Kg | |
| Dimension(WxDxH) | 235×468×535 mm | |
| Noise | <55db | |
Features
- Fast cooling: requires only 30 minutes to cool down from room temperature (25°C) to -20°C
- Wide temperature range: from -20°C to room temperature (ambient water temperature)
- Compact design suitable for laboratory benches and fume hoods
- Precise temperature control and advanced proportional cooling provides excellent temperature stability
- Stainless steel water bath with easily visible water level indicator
- Convenient liquid filling and draining, and overflow port protection for the tank
- 4.3-inch LCD touchscreen for easy setting and monitoring
- Over-current protection for the cooling system to avoid compressor overload
- Overheating protection for the bath, with audio alarm
- Automatic recovery function after power outage; recovers previous operation parameters
- Uses environmental-friendly refrigerant
- Comes with RS485 communication interface
Application
Chillers are used in laboratories and medical/research institutions for a variety of applications including:
- Analytical instrumentation: viscometer, Soxhlet extractor, electrophoresis
- Equipment cooling: distillation system, concentrator, extractor, condensing reflux unit, etc.
- MRI machines, CT scanners, Radiation Therapy Machines
- Blood Cooling Systems, Biograph Systems
- Linear Accelerator, lasers, ultrasonic crusher, continuous flow analyzer, etc.
