Product Description
Real-Time PCR System 16 well/4-channels

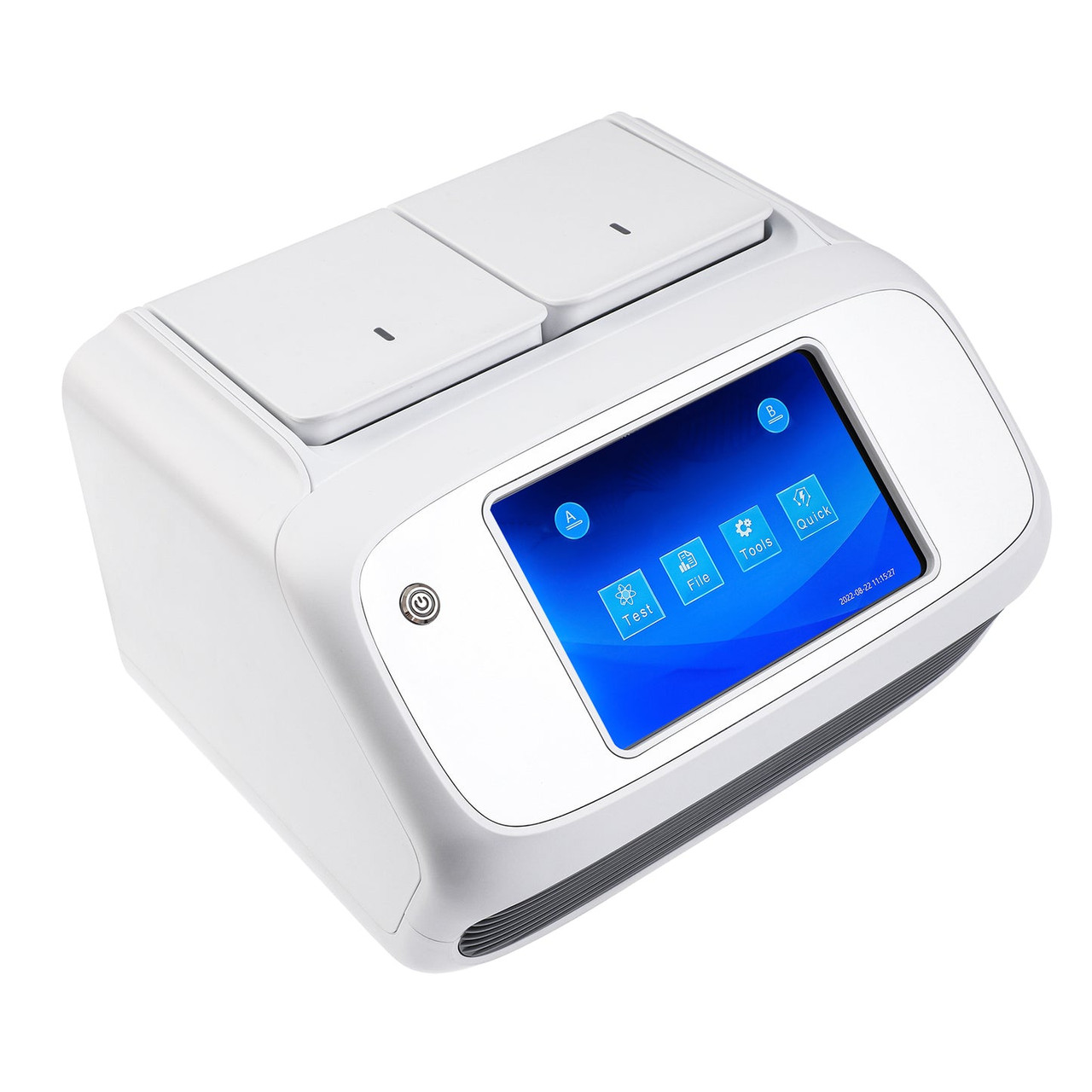

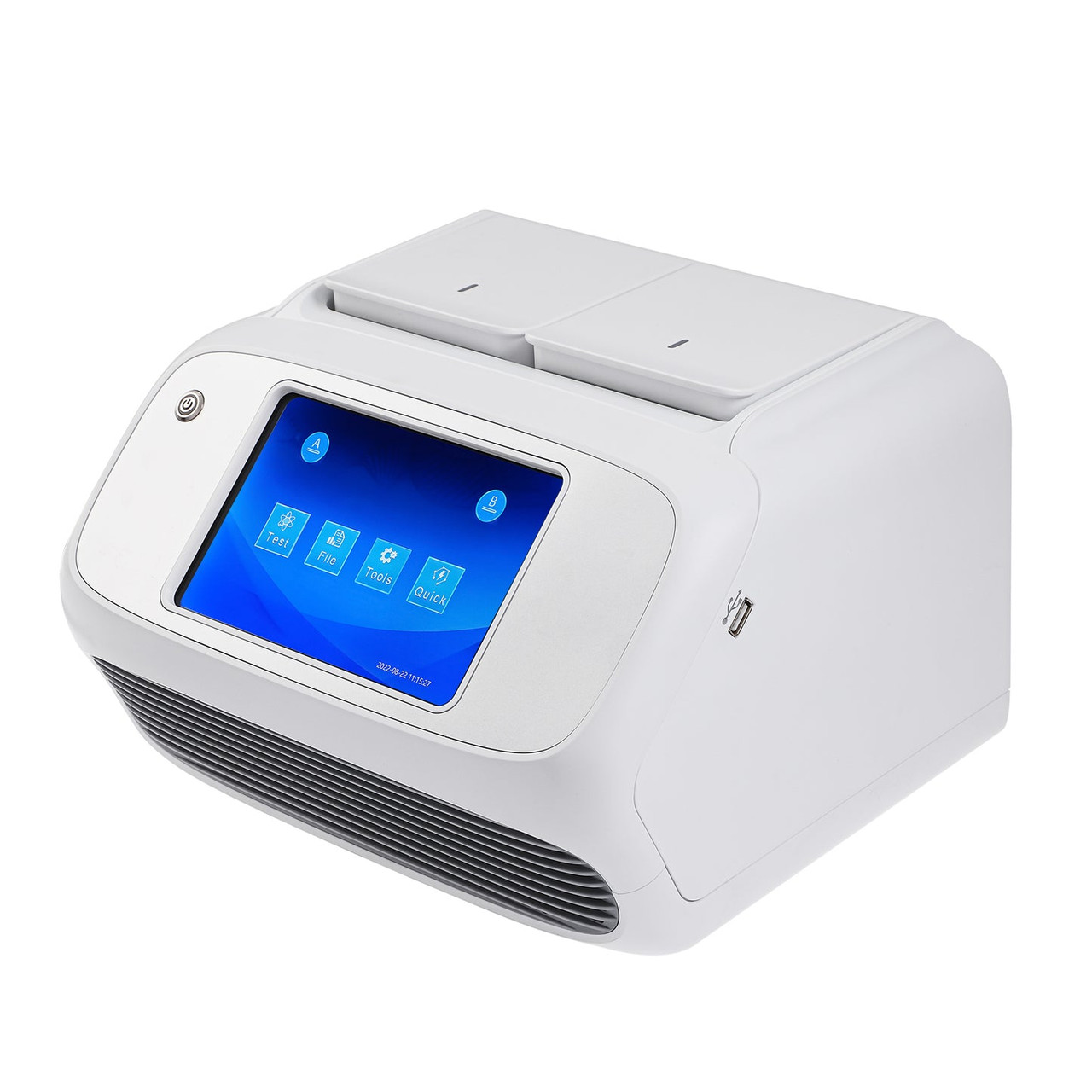

4E-S1604/4E-S3204 Real-Time PCR System is a portable fluorescence quantitative PCR instrument with four channels detection and double 8-well/16-well blocks design. The two blocks can run two different programs simultaneously. The product comes with a 7-inch-high definition TFT color touch screen and built-in software which can set-up experiments and analyze experimental data. It also comes with windows PC software that allows you to run and analyze qPCR data from personal computer. The custom-made Peltier elements and highly sensitive photoelectric detectors with side scan technology ensure superior performance and accurate results. For the stand-alone operation the device can also be connected to a thermal printer (optional).
Features
-

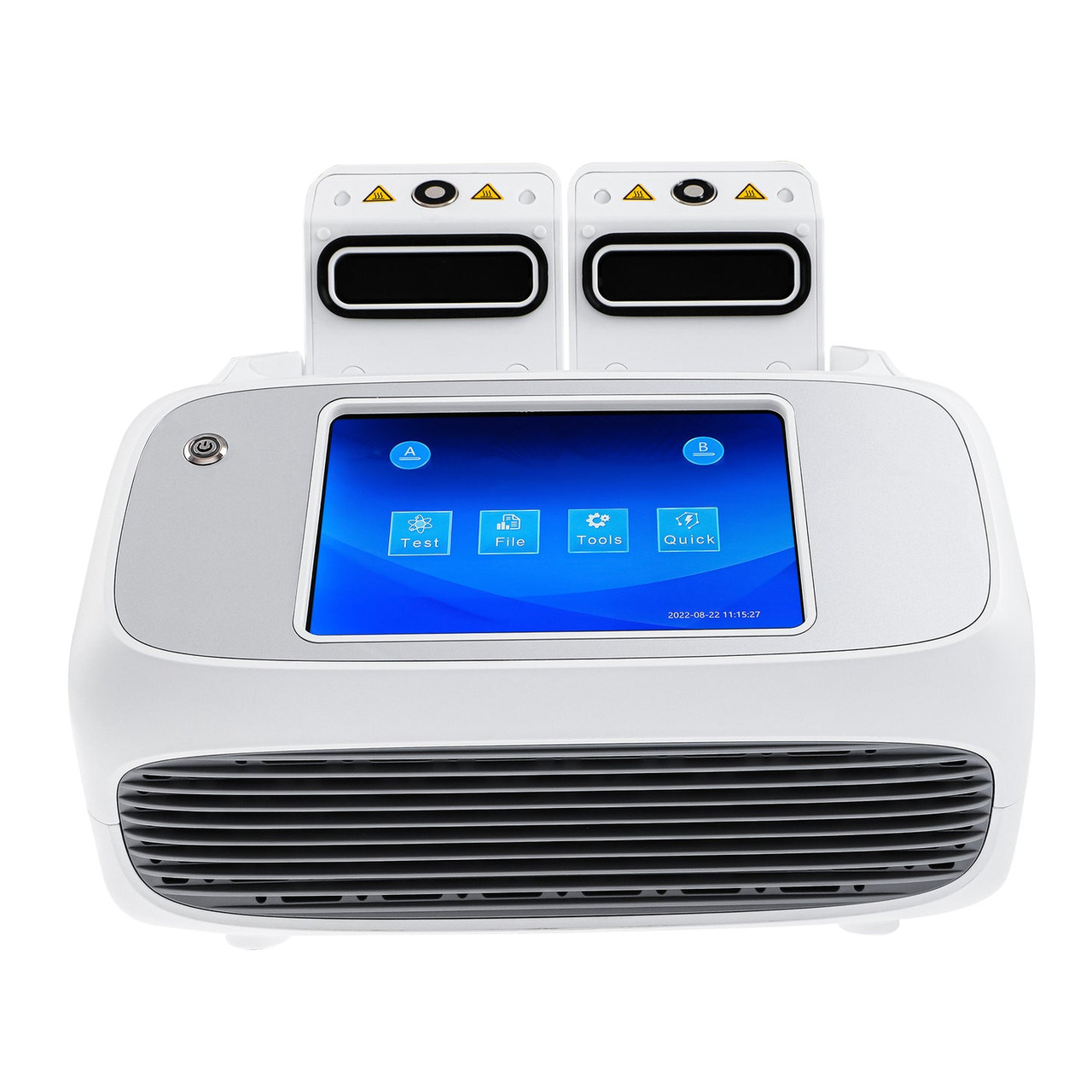

Dual block design, and the two blocks can run different programs at the same time
-
7-inch high-definition TFT color touch screen and built-in software which can set up experiments and analyze PCR data.
-
The qPCR comes with windows PC software that allows you to run and analyze qPCR data from personal computer.
-
The custom-made Peltier elements and highly sensitive photoelectric detectors with side scan technology ensure superior performance and accurate results.
-
For the stand-alone operation the device can also be connected to a thermal printer (optional).
-
Intuitive interface designed for good user experience.
Applications
Specifications
|
Model |
S1604 | S3204 |
|
Capacity |
16×0.2ml (2×8-well, dual block) |
32×0.2ml (4×8well, dual block) |
|
Consumable |
Clear 0.2 ml PCR tube /8–tube strips |
Clear 0.2 ml PCR tube /8-tube strips |
|
Reaction Volume |
15-100μl |
15-100μl |
|
Temperature control technology |
Customized Peltier module |
Customized Peltier allow 1.000.000 cycles |
|
Temperature Range |
0-100℃ (Resolution: 0.1℃) |
0-100℃ (Resolution:0.1℃) |
|
MAX. Ramp Rate |
7℃/s |
5℃/s |
|
Temperature fluctuation |
±0.1℃ |
±0.1℃ |
|
Uniformity |
±0.25℃ |
±0.25℃ |
|
Accuracy |
±0.25℃ |
±0.25℃ |
|
Hot Lid Temperature |
30-110℃ (Adjustable, default 105℃) |
30-110℃ (Adjustable, default 105℃) |
|
Temperature Control |
Block/Tube |
Block/Tube |
|
Excitation wavelength |
460-650nm |
460-628nm |
|
Emission wavelength |
F1:520-540nm / F2: 540-580nm |
F1: 520-540nm / F2: 540-580nm F3: 571-612nm / F4: 628-692nm |
|
Factory Calibrated Dyes |
F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F4: CY5 |
F1: FAM/SYBRGreen I F2: HEX/VIC/JOE/TET F3: ROX F4:CY5 |
|
Excitation |
Long-lasting LED |
Long-lasting LED |
|
Detection |
High sensitivity photoelectric detector |
High sensitivity photoelectric detector |
|
Dynamic Range |
1-1010 Copies |
1-1010 Copies |
|
Sensitivity |
1 copy |
1 copy |
|
Analysis Modules |
Quantitative/qualitative analysis, Melting curve, Genotyping |
Quantitative/qualitative analysis, Melting curve, Genotyping |
|
Date Export Formats |
excel,csv,txt |
excel,csv,txt |
|
Printing |
Reports can be printed (optional USB thermal printer) |
Reports can be printed (optional USB thermal printer) |
|
Control Method |
7 inch color TFT touch screen, Can be connected to PC |
7 inch color TFT touch screen, Can be connected to PC |
| Communication |

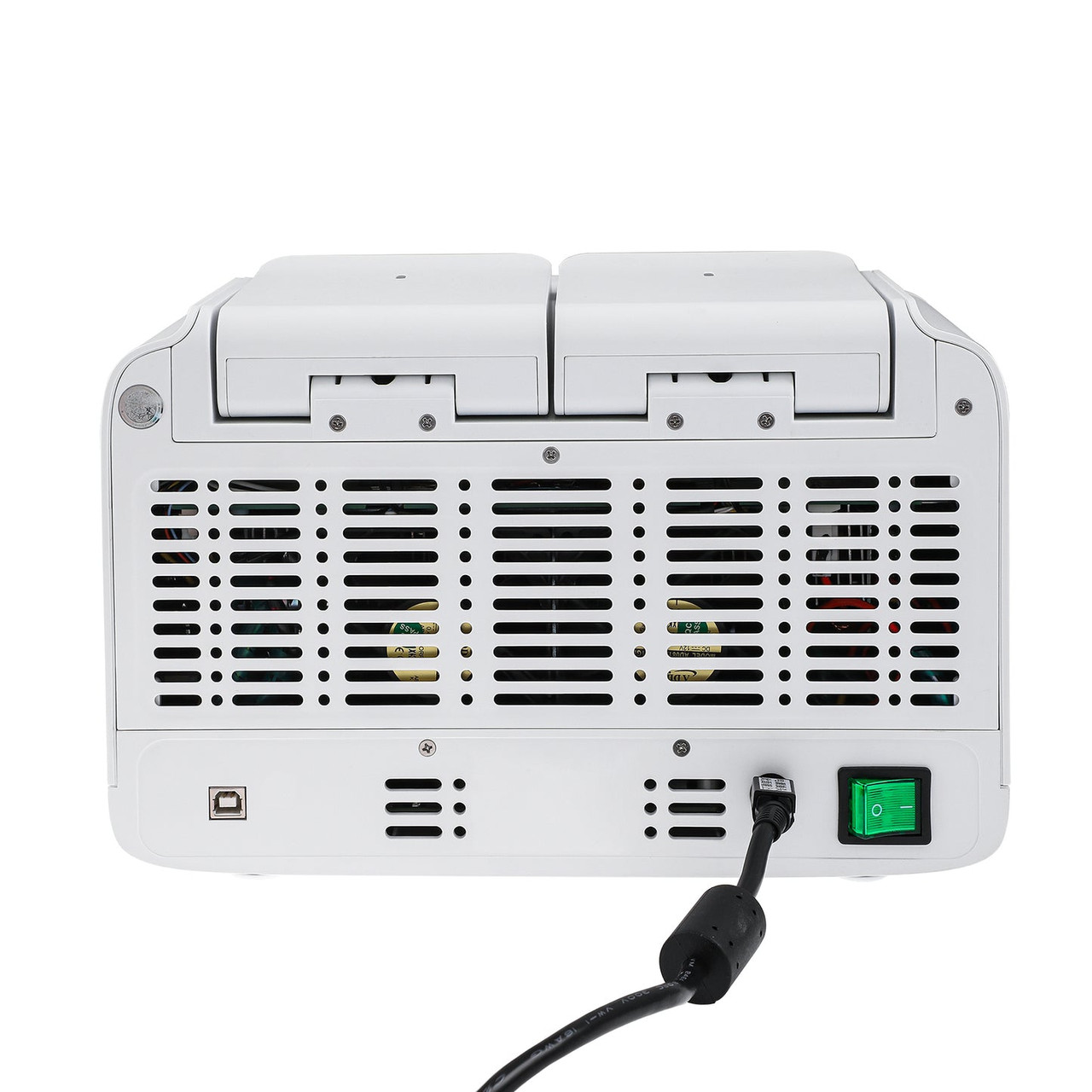

USB 2.0 |
USB 2.0 |
| Dimension | 300x267x198mm(L x W x H) | 300x267x198mm(L x W x H) |
| Net Weight | 8KG | 8KG |
| Voltage | 220VAC 50Hz | 220VAC 50Hz |
| Power | DC15V 255W | DC15V 255W |
