Product Description

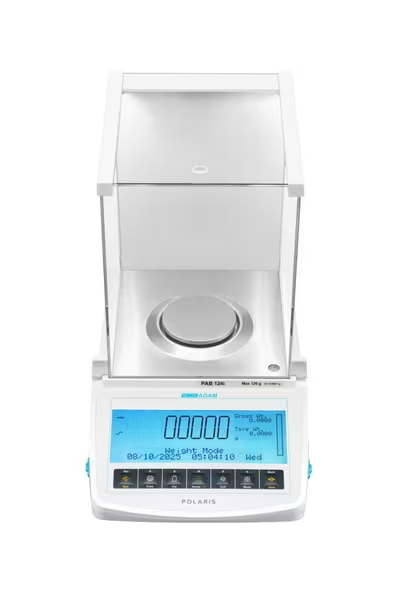

Polaris Semi-Micro and Analytical Balance PAB 324e, 320g
Polaris semi-micro and analytical balances combine a brightly illuminated weighing chamber with advanced connectivity options for streamlined GLP-compliant recordkeeping and communication. Their multi-line display provides clear, step-by-step guidance, rapid weighing results and real-time application status for complete operational clarity. Checkweighing is made more efficient by a colour-changing backlight that instantly indicates whether samples fall within user-defined limits.
Polaris provides complete clarity in weighing - from its brightly-lit chamber to the expansive LCD display.
Features:
- Store 200,000+ results in the internal memory for full traceability
- Colour-changing backlight in checkweighing mode to show if under, over or within acceptable limits
- Connect seamlessly to PCs, printers, or LIMS via Bluetooth®, RJ45 Ethernet, RS-232 and USB interfaces
- Compliance with Good Laboratory Practices (GLP) and Good Manufacturing Practices (GMP) standards for data tracking
- Unique air diversion technology (ADT) below the weighing pan discharges warm air from the weighing chamber for more accurate weighing results (PAB 125i only)
- Bright, LED-lit weighing chamber for clear visibility of samples
- Security slot for optional lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows easy cleaning
- Capacity tracker built into display for easily monitoring possible overloads
- Up to 200 ingredients can be stored in the internal memory (10 formulations each holding 20 ingredients)
- Multilingual display allows use in many different countries
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Removable draft shield for easy cleaning and transportation offsite
- Intuitive, easy-to-use display showing instructions, results and application status at a glance
- Multi-level security permissions: 1 administrator plus up to 99 operators
- Hook provided for below-balance weighing
- In-use cover provided to protect the balance from dust, dirt and moisture
- Solid, durable ABS housing to withstand daily use
- Parts counting with preset sample sizes (10, 25, 50, 100pcs)
- A 5-year warranty means quality assured for years of use.
Applications:
- Weighing
- Parts counting
- Percentage weighing
- Checkweighing
- Check counting
- Dynamic / animal weighing
- Accumulation
- Display hold
- Net total weighing
- Density determination
- Formulation
Technical specification:
Model:PAB 324e
Item Number: 1010017677
GTIN/UPC: 840886114763
| Category | Parameter | Value |
|---|---|---|
| Metrology | Capacity | 320g |
| Readability | 0.0001g | |
| Linearity | 0.0003g | |
| Standard Deviation <5% capacity (g) | 0.00009g | |
| USP Minimum Weight (K=2, U=0.10%) (g) | 0.1751g | |
| USP Optimised Minimum Weight (USP, K=2, U=0,10%, SRP≤0,41d) (g) | 0.0820g | |
| Minimum weight (K=2, U=1%) (g) | 0.0175g | |
| General Specifications | Pan Size | 80mm ø |
| Weighing Units | ct, custom unit, dr, dwt, g, GN, mg, mm, N, oz, ozt, ti, tl.H, tl.S, tl.T, tol | |
| Stabilisation Time | 3 | |
| Interface | RS-232/USB/Ethernet RJ45/Bluetooth | |
| Calibration | External calibration | |
| Display | Backlit LCD Graphical with 26mm high digits | |
| Power | Power Supply | 18VDC 830mA adapter |
| Operating Conditions | Operating Temperature | 15° to 35°C |
| Product Information | Construction | ABS plastic |
| Net Weight | 6.3kg | |
| Dimensions | Draft Shield Type | Chamber |
