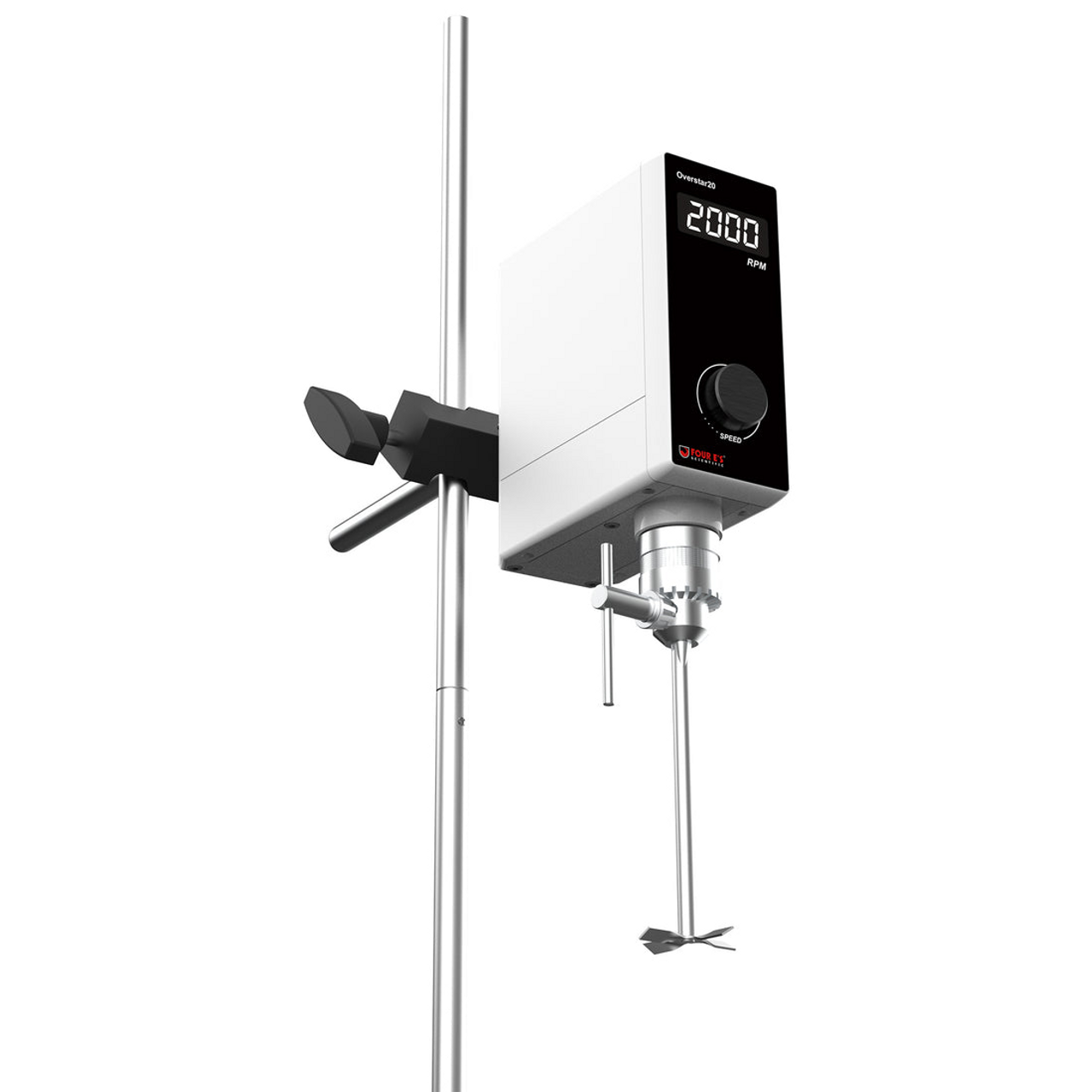

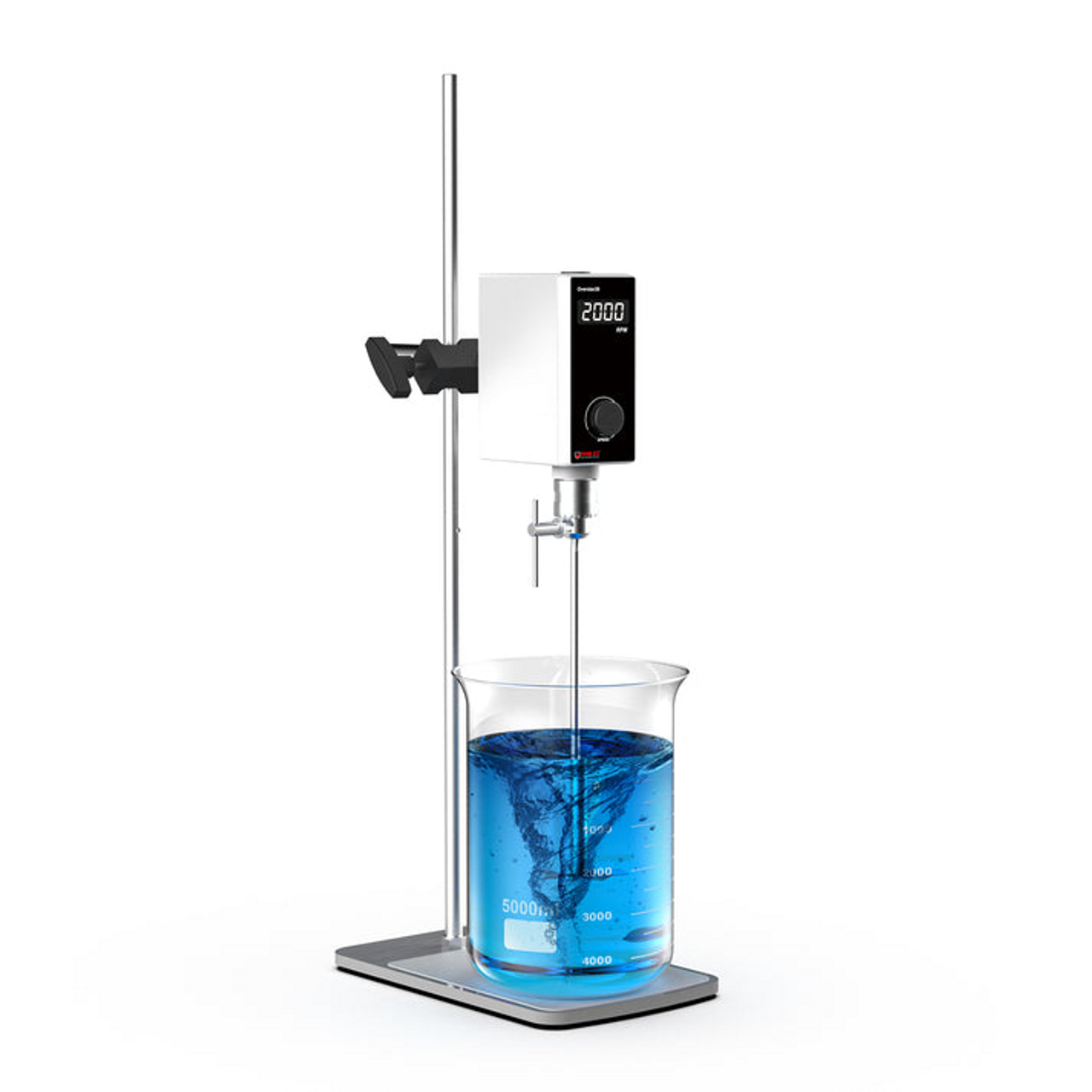

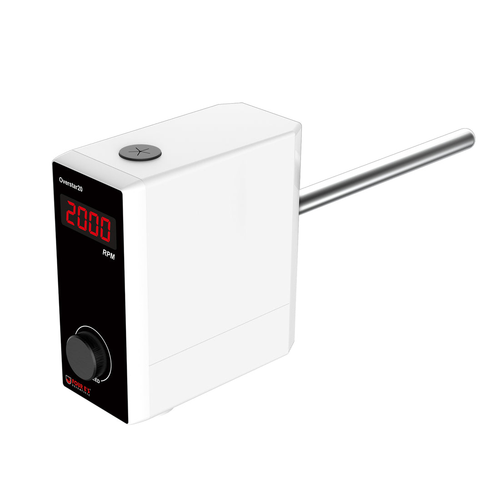

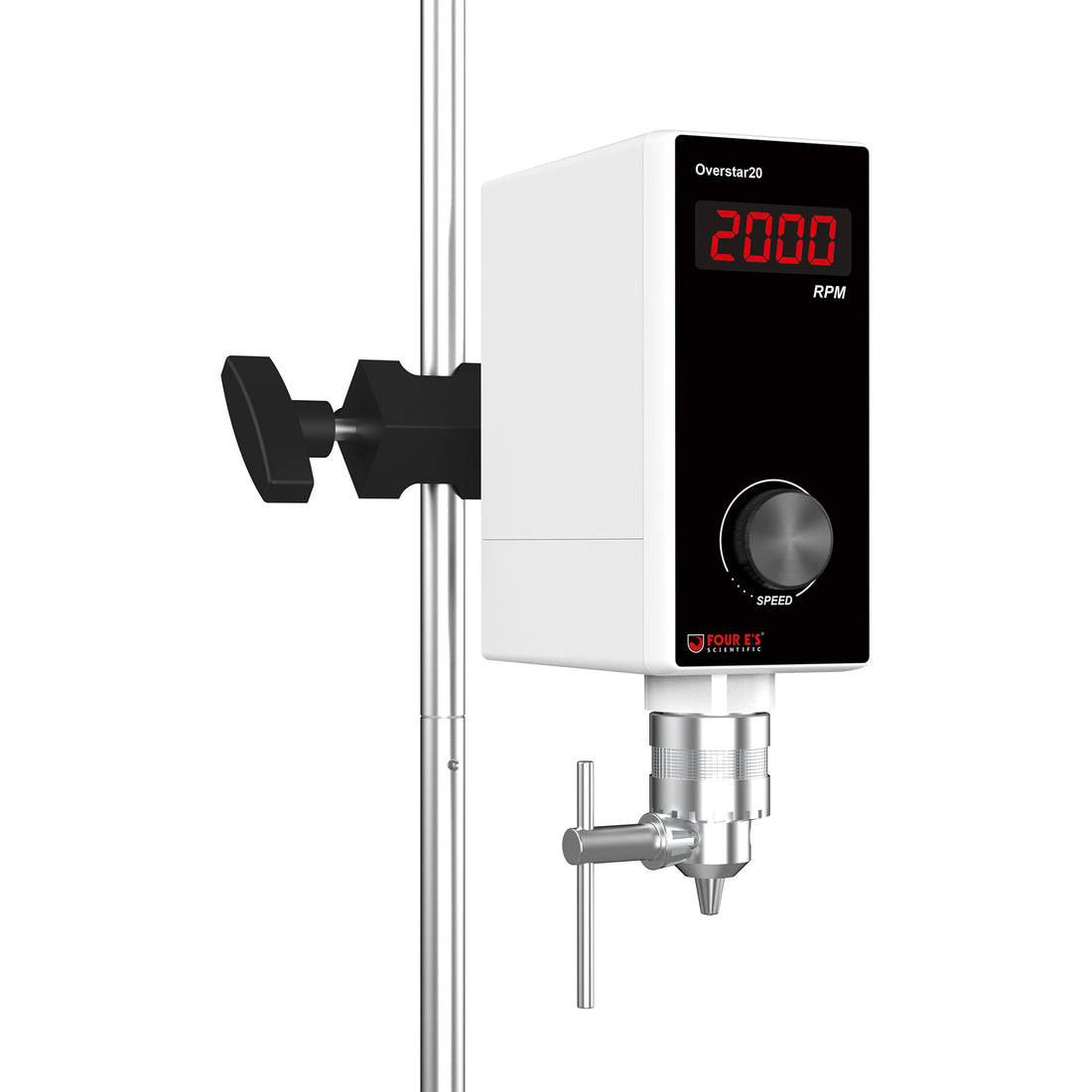

Overstar20: Max. torque at stirrer shaft: 20 N-cm. Compact, lightweight design. Speed range 50-2000rpm. Wide LED display, overload protection, auto cut-off safety circuits. Brushless DC motor. Through-shaft housing for easy impeller height adjustments.
Compact, Lightweight and Sleek design
Overload protection system if the torque exceeds the stirrer ratings
Safety circuits: Circuit auto cut-off feature for additional protection
Maintenance-free Brushless DC motor

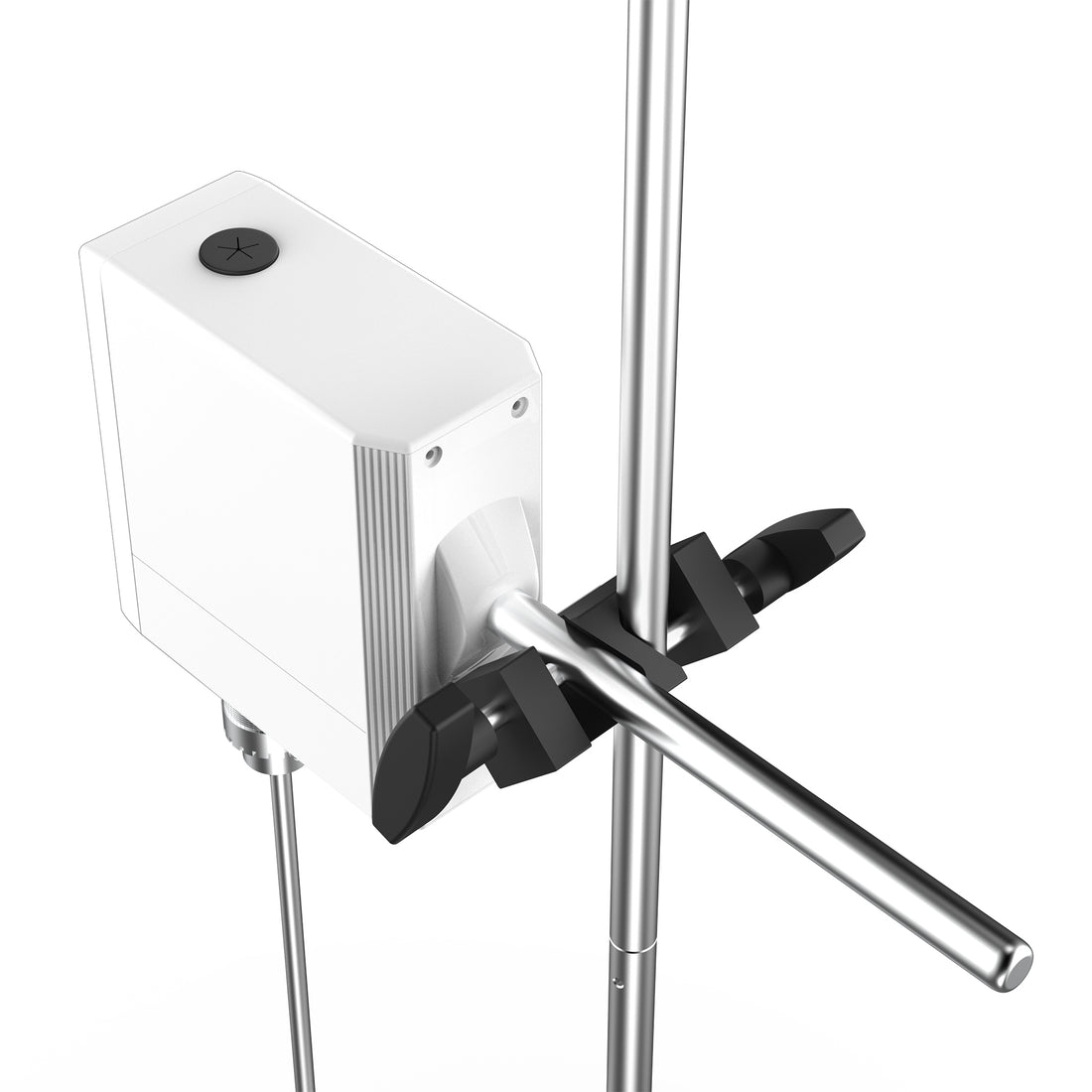

The through-shaft housing design allows for easy impeller height adjustments and thereby less downtime in between sample changes
Features:
● Compact, Lightweight and Sleek design
● Speed Range: 50rpm~2000rpm
● Provides constant speed even with changes in viscosities of the sample
● Wide LED display for precise speed adjustment and monitoring
● LED display shows actual and set speeds alternately
● Overload protection system if the torque exceeds the stirrer ratings
● Safety circuits: Circuit auto cut-off feature for additional protection
● Maintenance-free Brushless DC motor
● The through-shaft housing design allows for easy impeller height adjustments and thereby less downtime in between sample changesad Stirrer,Digital Overhead Stirrer manufacturer
20L LED Overhead Stirrer,LED Overhead Stirrer manufacturer,LED Digital Overhead Stirrer
| Model | OHS-20D |
| Max. torque [N·cm] | 20 |
| Speed range [rpm] | 50-2000 |
| Speed increment [rpm] | Stepless, 10rpm |
| Speed accuracy | ±1% |
| Viscosity max. [mPas] | 10,000 |
| Chuck Diameter Range [mm] | 0.5-10 |
| Max. stirring quantity (H20)[L] | 20 |
| Voltage [V] | 100-240 |
| Frequency [Hz] | 50/60 |
| Power [W] | 65 |
| Speed display | LED |
| Overload protection | YES |
| Motor protection | YES |
| Over temperature protection | YES |
| Dimensions (D×W×H)[mm] | 71×160×192 |
| Weight [kg] | 2.8kg |
| Protection class according to DIN EN60529 | IP42 |
| Permissible ambient temperature [°C] | 5-40 |
| Permissible relative humidity [%] | 80 |
