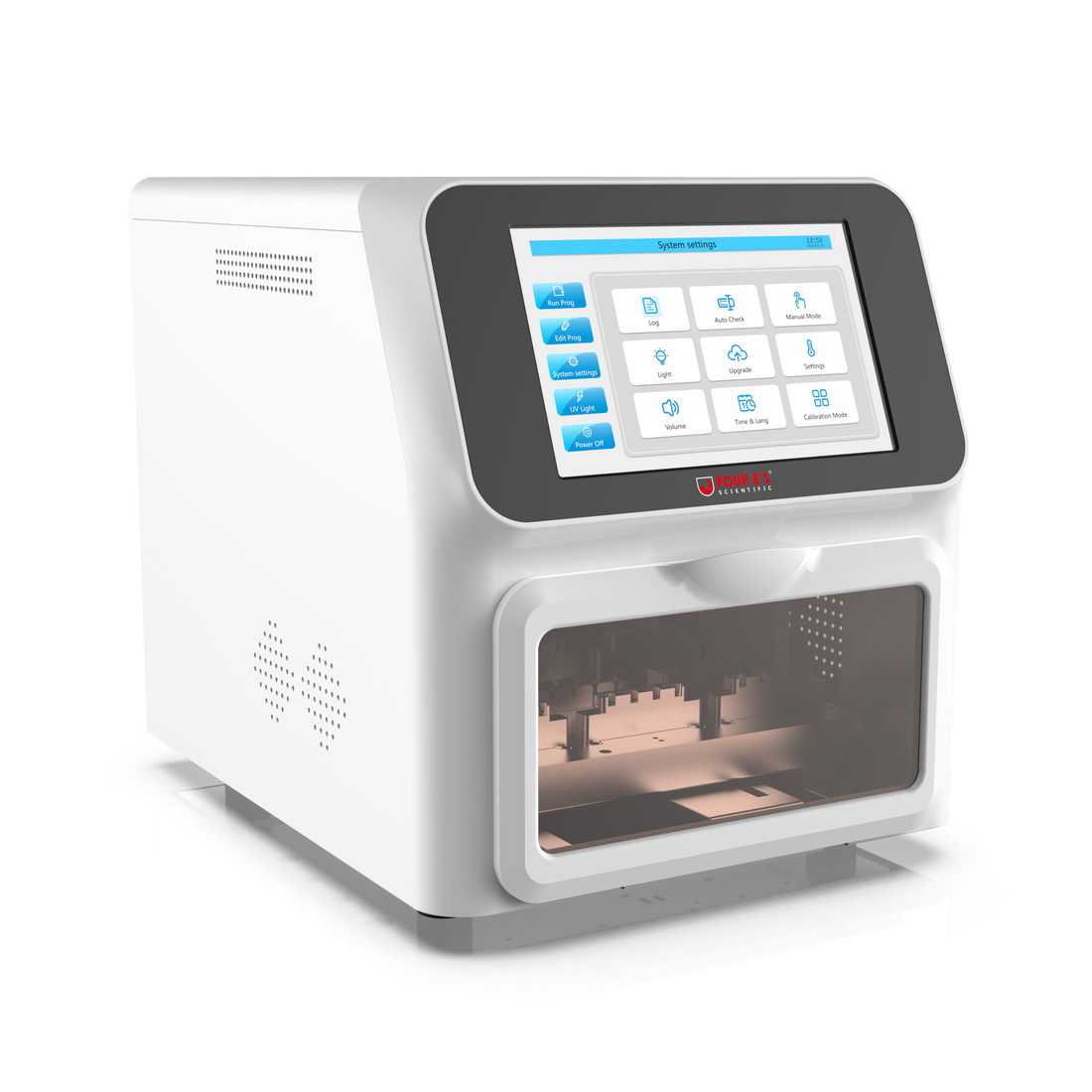

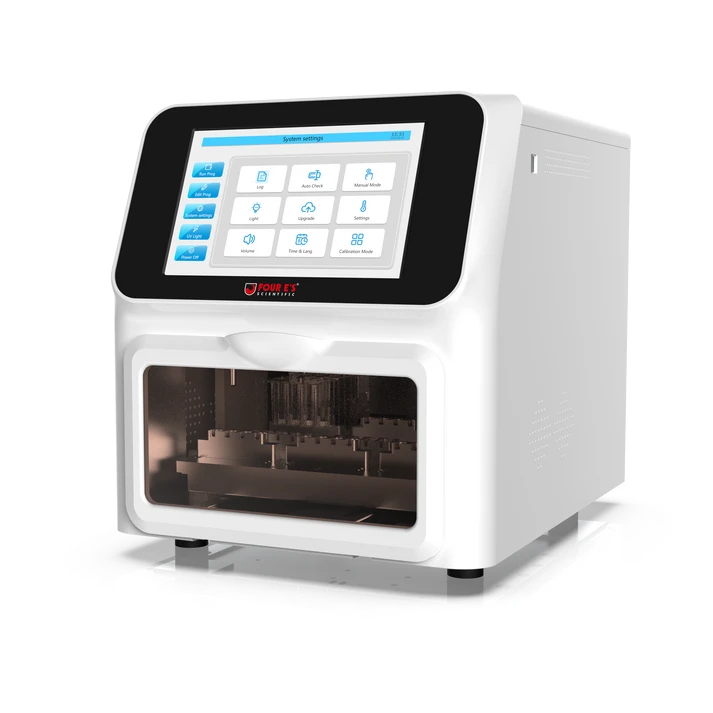

Large Volume Nucleic Acid Extractor

MultiEX 024L provides automated nucleic acid extraction and purification using magnetic bead-based separation, with the capacity to process 1-24 samples in a single run. The MultiEX 024L is designed for nucleic acid extraction from large volume samples, with a maximum processing volume of 8mL.

Ideal for nucleic acid extraction involving larger initial sample volumes, particularly cfDNA (cell-free DNA) extractions from bodily fluids (liquid biopsy) and pathogenic DNA extraction from water sources including wastewater. It is suitable for research facilities, diagnostic laboratories, and biotechnology industry.

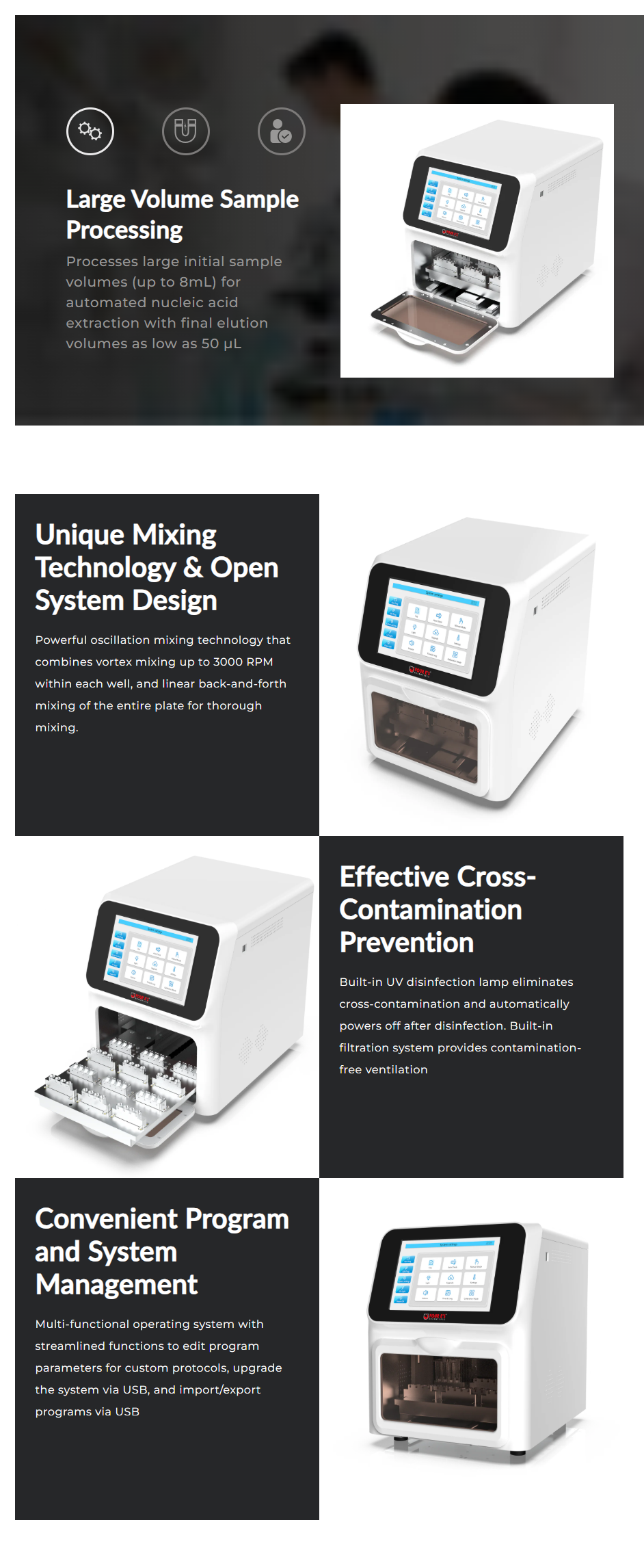

Features

Large Volume Sample Processing Enables Diverse Applications

Processes large initial sample volumes (up to 8mL) for automated nucleic acid extraction with final elution volumes as low as 50 µL

Ideal for applications requiring larger initial sample volumes, particularly cfDNA (cell-free DNA) extractions from bodily fluids and pathogenic DNA extraction from water sources including wastewater

Also well-suited for extraction protocols requiring larger sample volumes exceeding the conventional 1ml threshold for various reagent kits

Unique Mixing Technology & Open System Design

Powerful oscillation mixing technology that combines vortex mixing up to 3000 RPM within each well, and linear back-and-forth mixing of the entire plate for thorough mixing

The mixing speed of the magnetic rod (RPM), the waiting times of the rod at both the liquid surface and at the liquid bottom, and many other parameters can be easily adjusted according to the specifications of the reagent kit with our open system design

The magnetic flux of the magnetic rods is rated up to 5500 Gs, and each rod can be disassembled for hassle-free maintenance

Effective Cross-Contamination Prevention

Built-in UV disinfection lamp eliminates cross-contamination and automatically powers off after disinfection

Built-in filtration system provides contamination-free ventilation

Convenient Program and System Management

Multi-functional operating system with streamlined functions to edit program parameters for custom protocols, upgrade the system via USB, and import/export programs via USB

Fast Heating, High Efficiency

Wide heating temperature range from 37℃ to 125℃; heats up from RT to 100℃ in just 1 minute
