Product Description

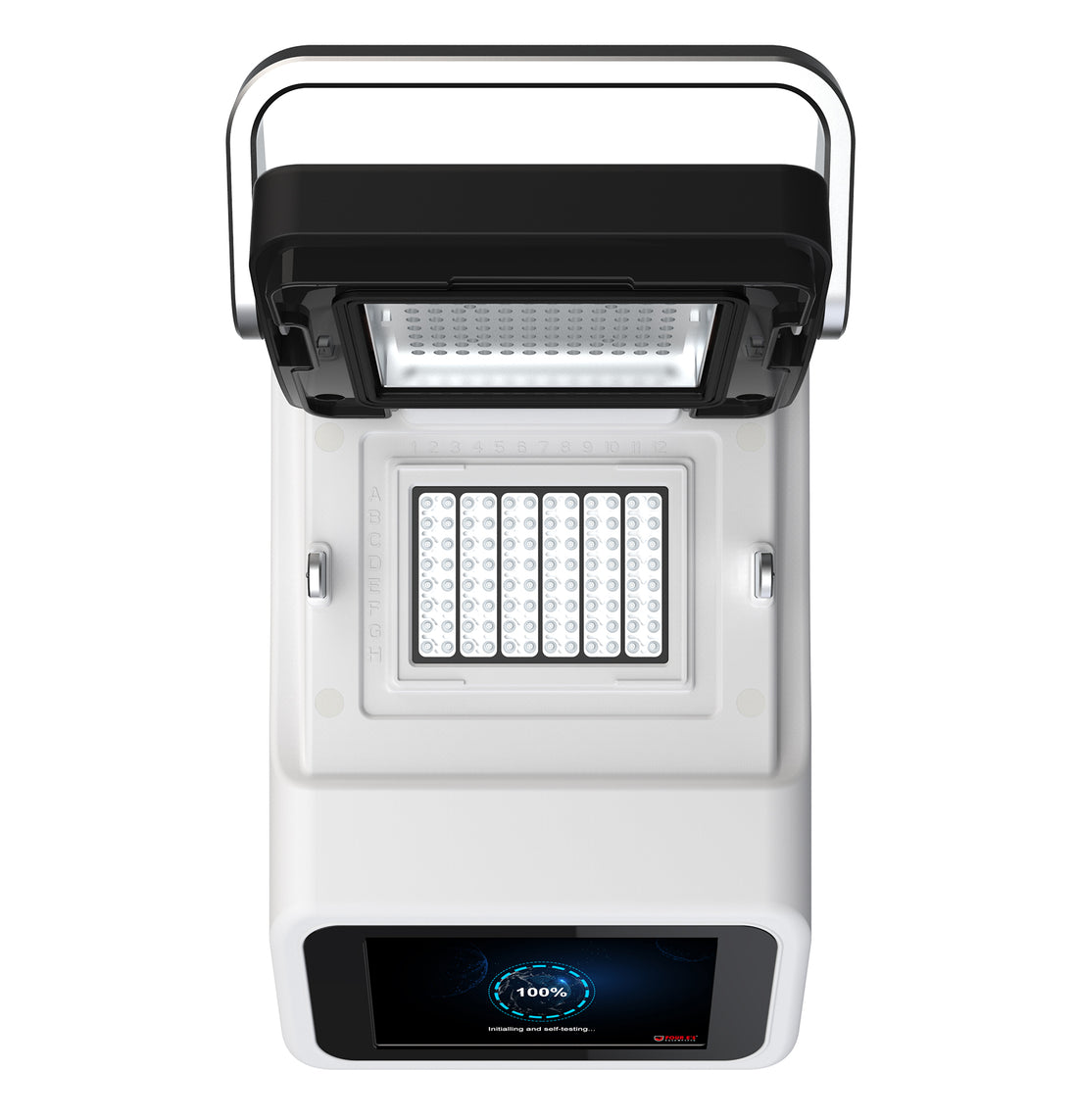

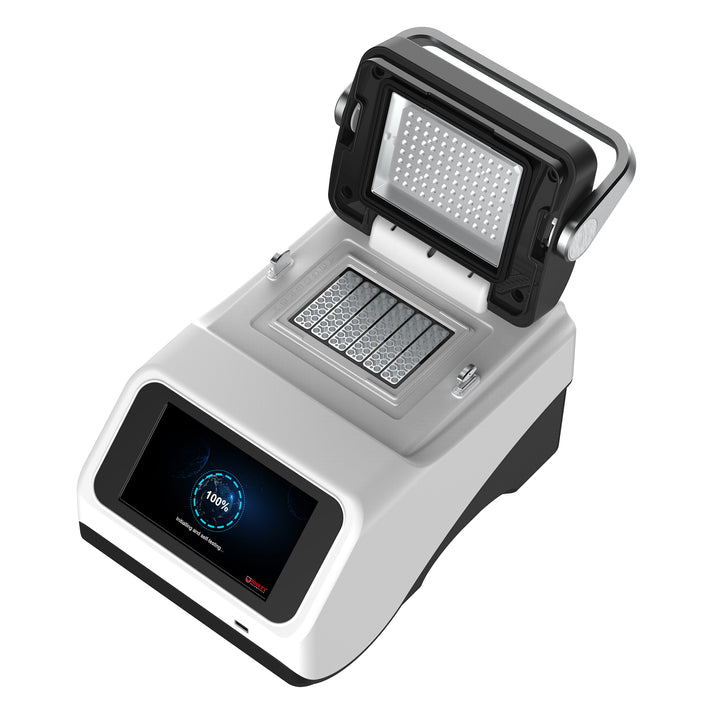

Gradient PCR Thermal Cycler w/ Touch Screen and 6 TE Channels
Representing the forefront of PCR technology, the Gradient PCR Optima 96 features six separate imported thermo-electric modules for precise temperature control and gradient PCR to ensure performance on the edges of 96 well plates. The device is easy to use with a high resolution, 7-inch LCD touchscreen panel, and has many advanced features such as touchdown (TD) PCR mode and long-range PCR modes. The Optima 96 also boasts one of the fastest heating/cooling rates in the industry for better nucleotide pairing performance. Designed to be compatible with PCR tubes, PCR 8 strips, and 96-well plates, this device is an excellent choice for researchers seeking precise temperature control and advanced features for PCR optimization and performance.
Optima96 Thermal Cycler: Six independent temperature blocks with precise control, excellent gradient accuracy, and space-saving design. Intelligent lid, fast heating/cooling rates, USB interface, user accounts, and compatibility with various PCR formats.
| Model | SK40 |
| Sample Capacity | 96-well plates 12x PCR 8 strips 96x 0.2 ml well plates (works with non-skirted and semi-skirted plates ONLY, does NOT work with fully-skirted plates) |
| PCR reaction volume | 10-100 µl |
| Heating lid temperature | 30-110°C |
| Max. block heating rate | 5°C/s |
| Max. block cooling rate | 4°C/s |
| Sample temperature range | 4°C-100°C |
| Temperature uniformity | <0.5°C (20s after reaching 95°C ) |
| Temperature accuracy | ±0.1°C (35 °C - 99.9°C) |
| Technology(heating/cooling) | Semiconductor Peltier technology 6 independent blocks |
| Display resolution | 0.1°C |
| Maximum temperature¨difference between blocks | 25°C (max. 5°C between two adjacent blocks) |
| Difference between two adjacent blocks | 0.1°C-5.0°C |
| Gradient temperature accuracy | 9±0.1°C (35°C - 99.9°C) |
| Gradient temperature accuracy | <0.5°C (20s after reaching 95°C) |
| Display | 7" LCD touch screenreal-time display of PCR process |
| Max. number of steps | No limit |
| Time increment/decrement | 1-120s for long Range PCR experiment |
| Temperature increment/decrement | 0.1°C-10.0°C for Touchdown PCR |
| Maximum number of cycles | Unlimited |
