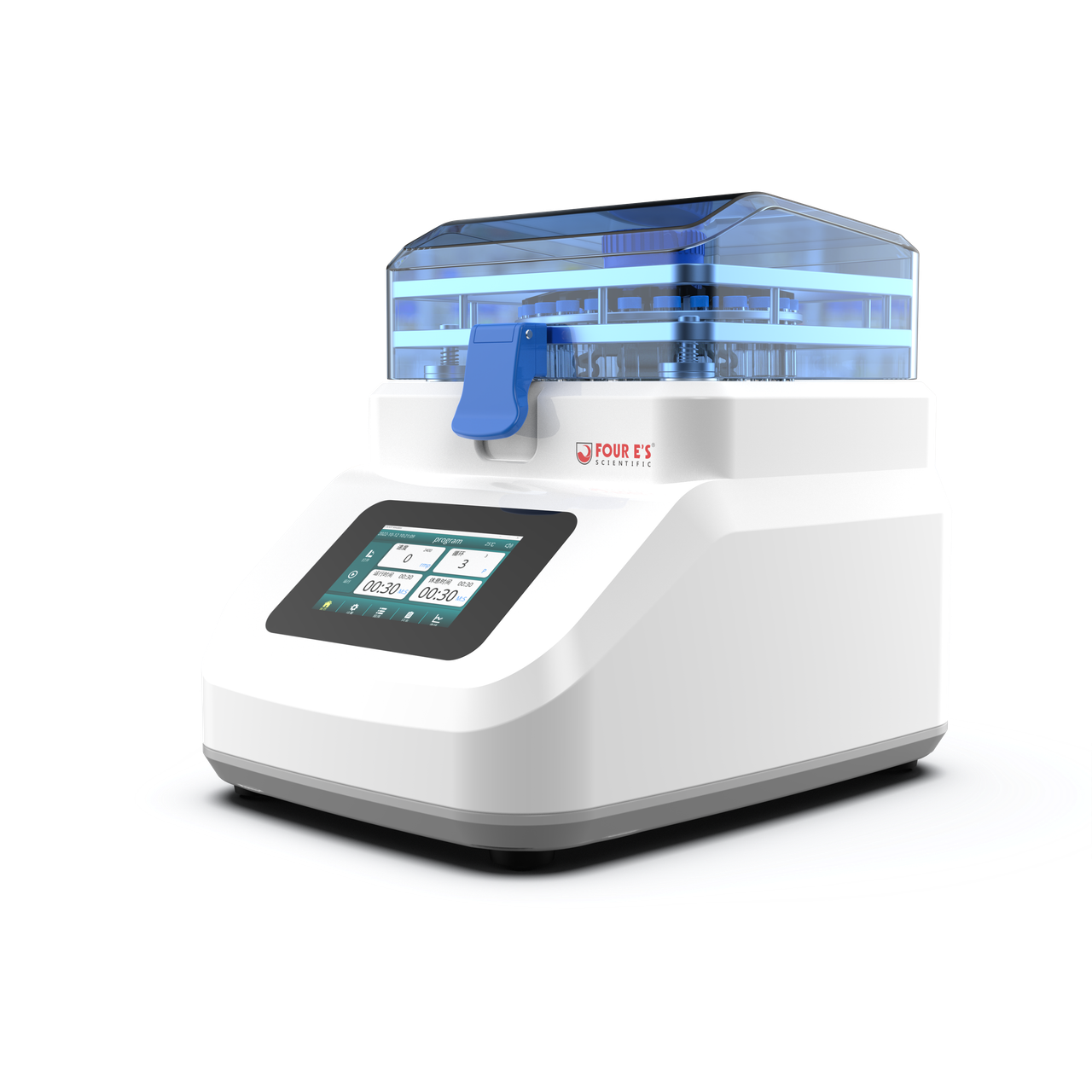

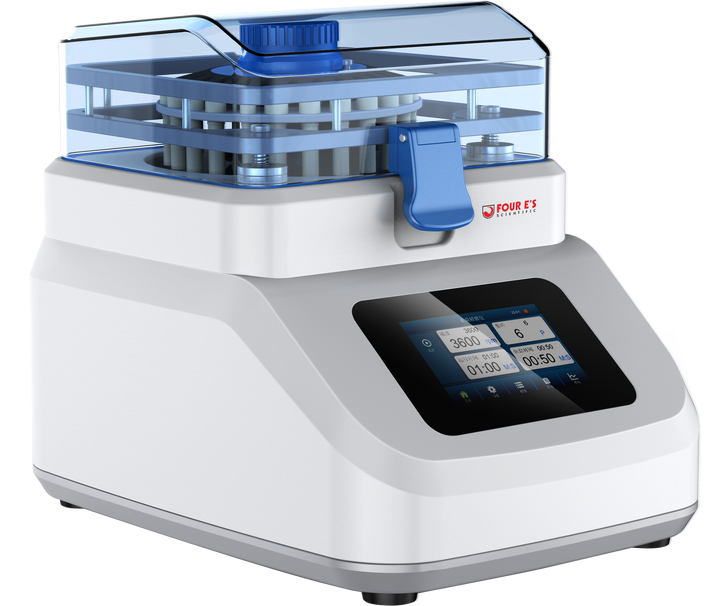

High-Performance Bead Mill Homogenizer

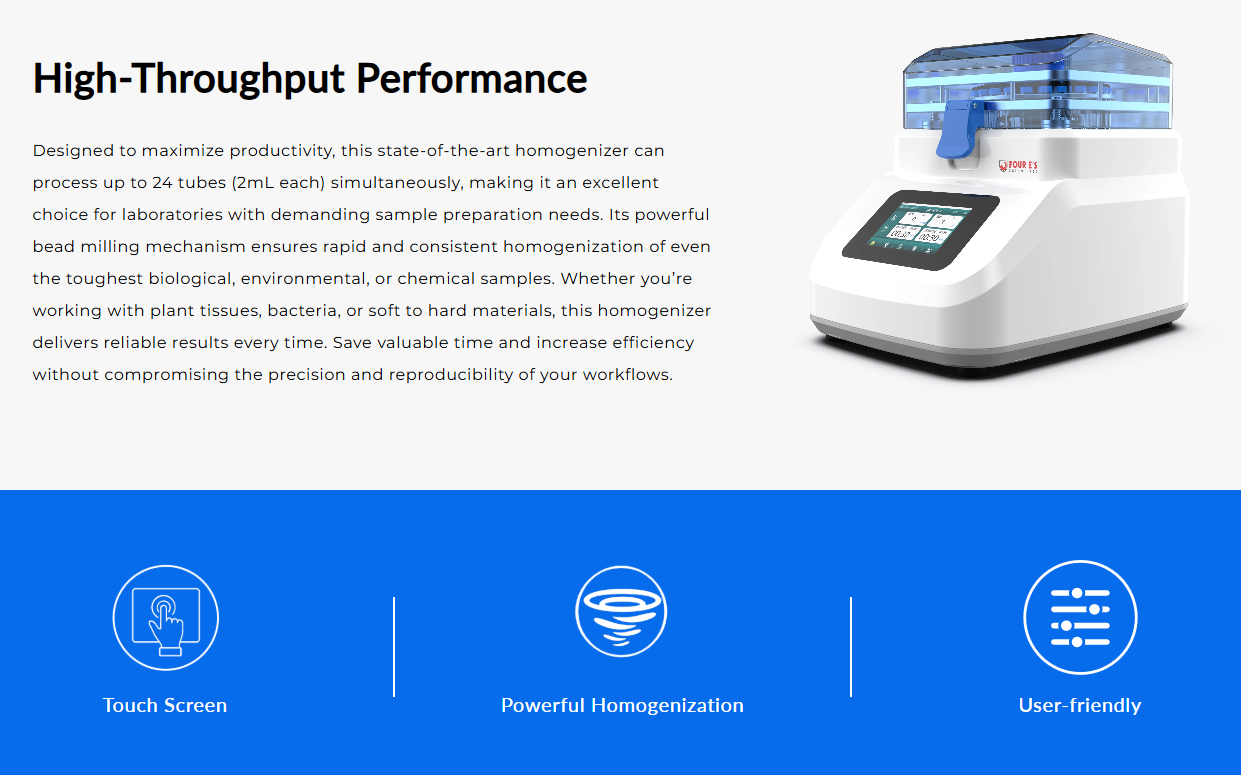

The Bead Mill Homogenizer is a high-throughput tissue homogenizing device capable of operating up to 24 tubes (2mL) simultaneously. It lyses, grinds, and homogenizes a wide variety of biological samples through high-speed 3D motion. The device uses micro-beads to physically break down samples, producing consistently homogenized material.

Cycle setting options allow you to program rest periods to protect heat-sensitive samples, while post-homogenization centrifugation makes sample collection simple and efficient.

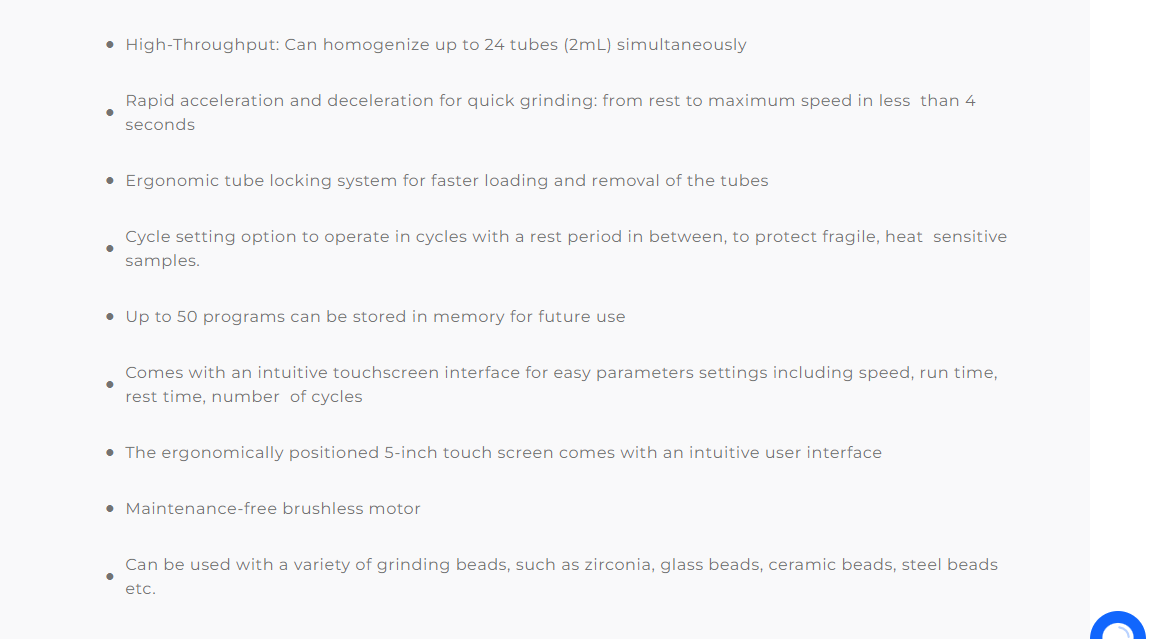

Key Features

High-Throughput: Homogenize up to 24 x 2mL tubes simultaneously
Fast Acceleration: Reaches top speed in under 4 seconds
Ergonomic Tube Locking: Simplifies loading and removal
Cycle Programming: Add rest periods between cycles for fragile samples
Memory Storage: Save up to 50 custom programs
Touchscreen Control: 5-inch intuitive UI for all parameter settings
Maintenance-Free: Brushless motor ensures reliability
Versatile: Compatible with zirconia, glass, ceramic, and steel beads

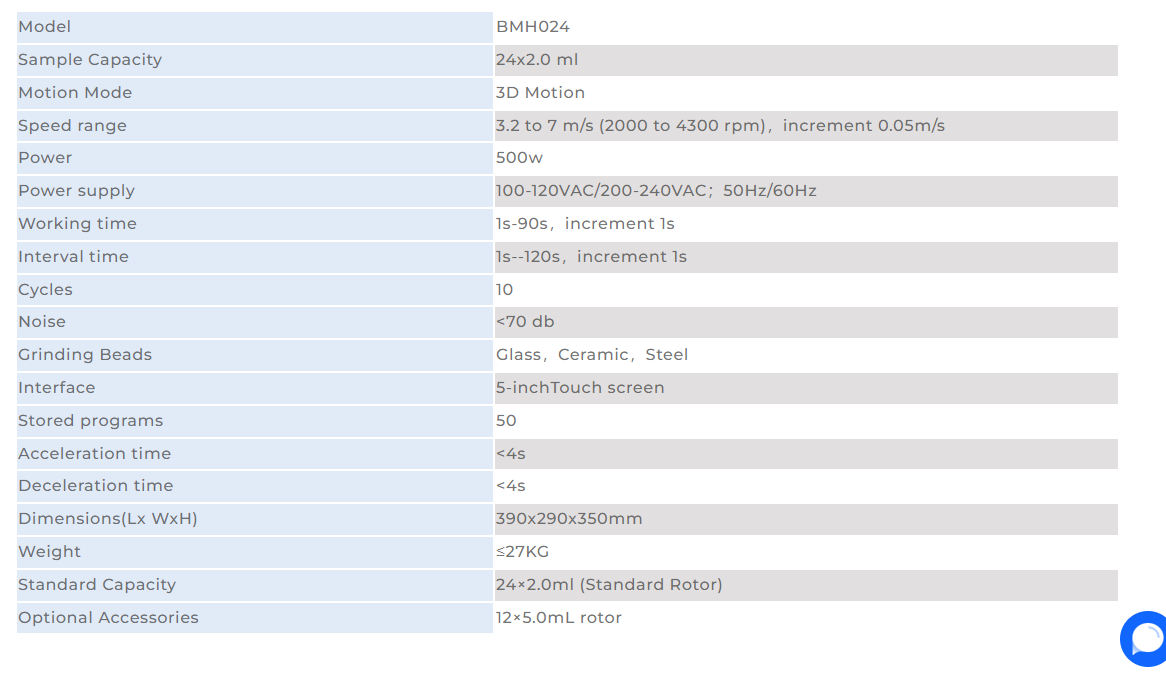

Technical Specifications

Item	Details
Sample Capacity	24 x 2.0 mL
Motion Mode	3D Motion
Speed Range	3.2 to 7 m/s (2000–4300 rpm), 0.05 m/s increments
Power	500 W
Power Supply	AC100–240V, 50/60 Hz
Working Time	1–90 s, 1 s increments
Interval Time	1–120 s, 1 s increments
Cycles	10
Noise Level	<70 dB
Compatible Beads	Glass, Ceramic, Steel
User Interface	5-inch Touchscreen
Stored Programs	Up to 50
Acceleration Time	<4 s
Deceleration Time	<4 s
Dimensions (L x W x H)	390 x 290 x 350 mm
Weight	≤27 kg
Standard Rotor Capacity	24 x 2.0 mL
Optional Accessories	12 x 5.0 mL Rotor
