Product Description

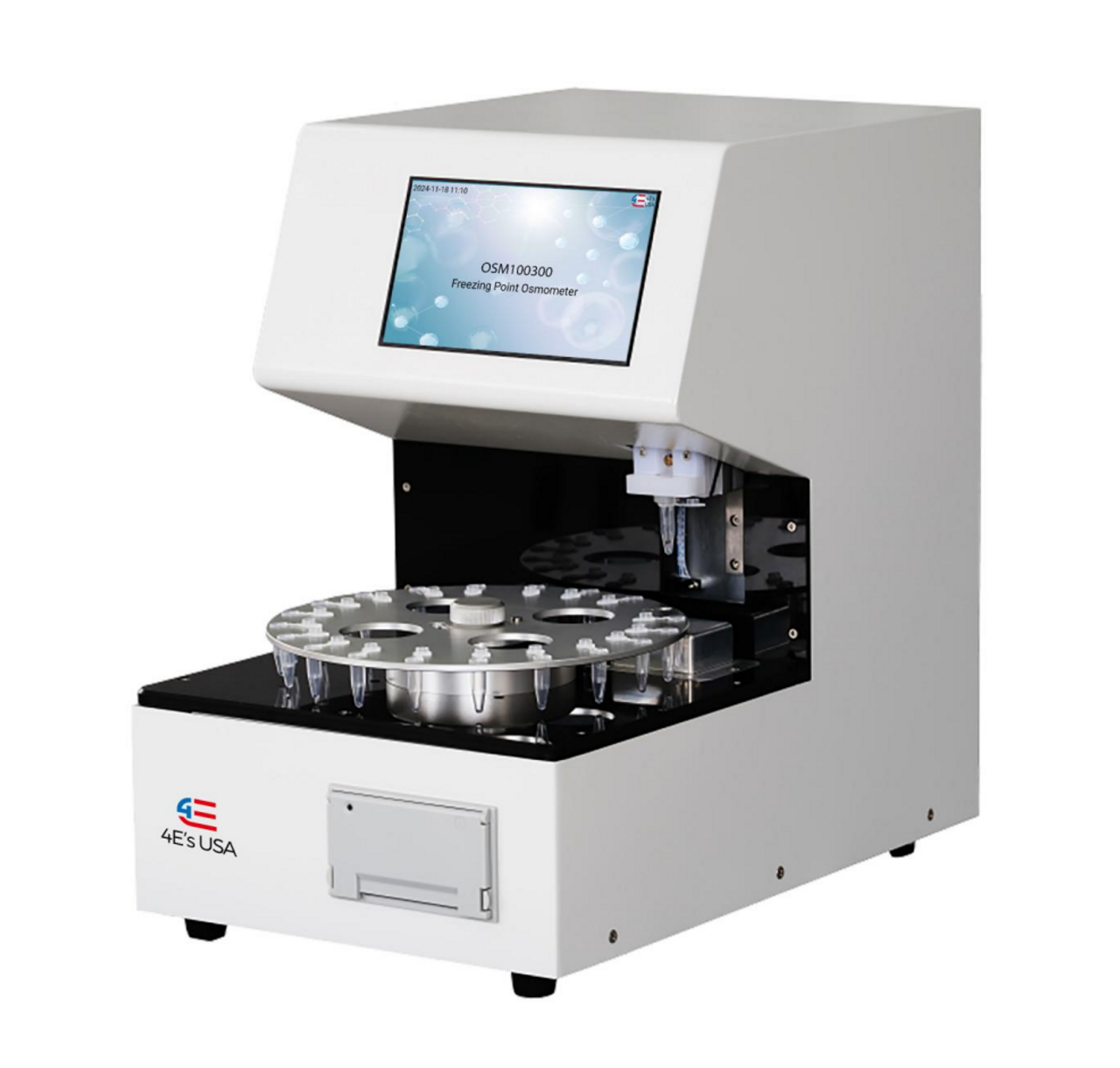

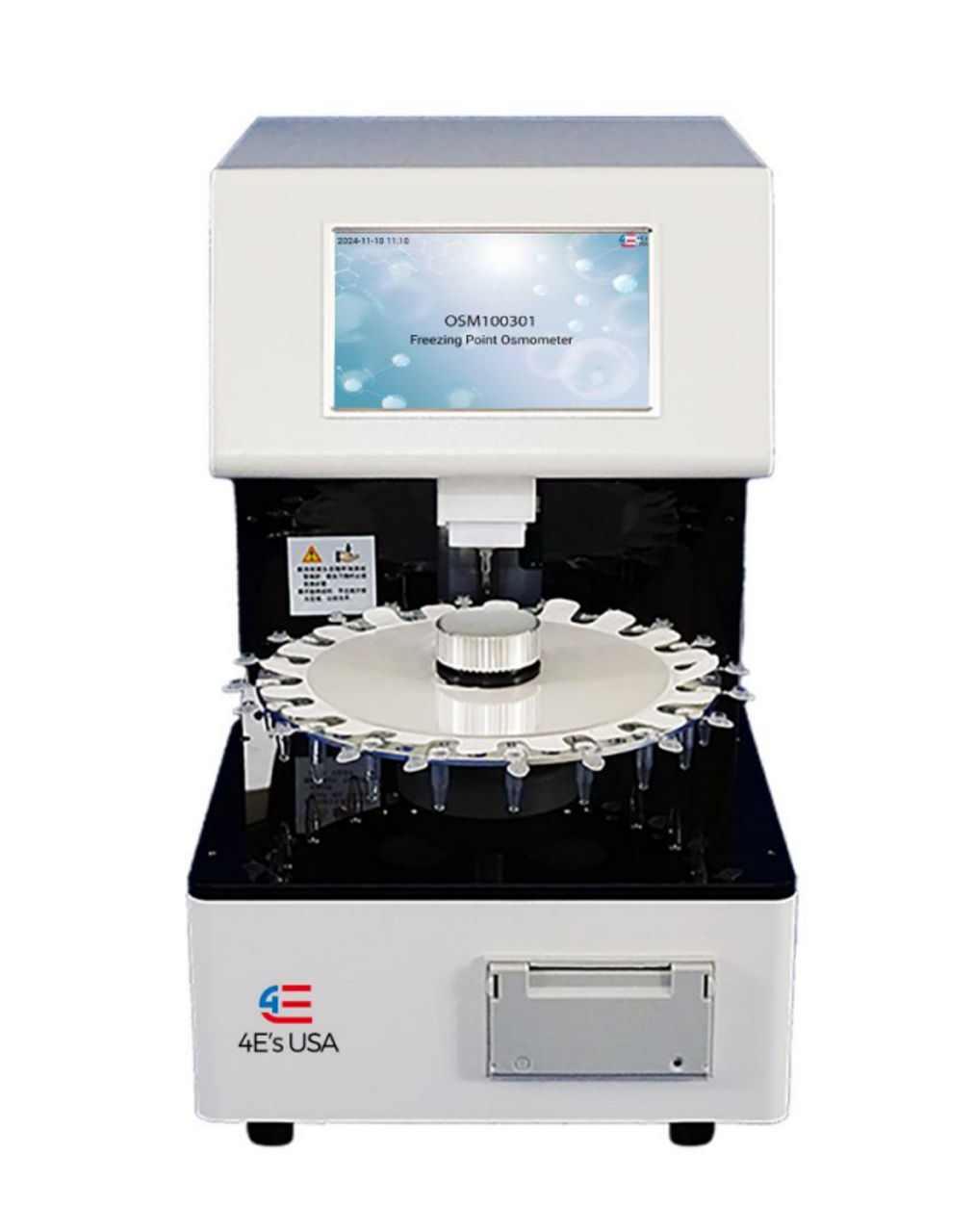

4E's Scientific High-Throughput Multi-Sample Osmometer with Audit Trail Function
Multi-sample Osmometer – Models 4E-OSM100300 / 4E-OSM100301
Designed for high-throughput laboratories, this advanced freezing-point osmometer delivers fast, reliable osmolality measurements across up to 20 aqueous samples at a time. Its automated rotary turntable and elevated probe enable true walk-away functionality for both batch and continuous operations.
The integrated 7-inch touchscreen runs on an intuitive Android operating system, giving users complete control with real-time status updates. With features like a built-in printer, USB/RS232 connectivity, and optional audit trails with electronic signatures, this osmometer is ideal for labs that demand both performance and compliance.
Key Features:
-
Automatically processes 1 to 20 samples in continuous or batch mode
-
Freezing-point depression method for total osmolality measurement
-
Multi-point calibration ensures high precision at any concentration
-
Built-in touchscreen display with Android OS
-
High-precision sensor for exceptional accuracy and repeatability
-
Built-in printer with multiple output formats
-
USB and RS232 ports for data export and system integration
-
Optional audit trail and electronic signature capabilities
-
10-level user access management system
-
Quiet operation for noise-sensitive environments
-
Low maintenance — refrigerant-free cooling
-
Small sample volume required: just 60 µL (range: 50–100 µL)
-
Data export in Excel or CSV format
-
Compatible with LIS/HIS systems
Specifications:
-
Models: 4E-OSM100300 / 4E-OSM100301
-
Sample Throughput: 1–20 samples
-
Sample Volume Required: 60 µL (range: 50–100 µL)
-
Concentration Range: 0–3000 mOsmol/kg
-
Accuracy:
±2 mOsmol/kg (≤400 mOsmol/kg)
±1.0% (>400 mOsmol/kg) -
Test Time: ≤90 seconds per sample
-
Precool Time: ≤180 seconds
-
Display: 7-inch touchscreen
-
Operating System: Android
-
Storage Capacity: Up to 3,000,000 measurements
-
Operating Temperature: 5–35°C
-
Operating Humidity: 5–80%
-
Dimensions: 280 × 445 × 435 mm
Compatible Consumables:
-
Four E’s 0.5 mL Sample Tube (PN: 4E-PCRTOSM)
-
Axygen PCR Tube (PN: 4E-PCR-05-C)
Model-Specific Features:
Feature | 4E-OSM100300 | 4E-OSM100301 |
---|---|---|
RS232 Port | Yes | Yes |
USB Data Transfer | Yes | Yes |
External Device Connectivity | Yes | Yes |
User Access Control | Yes | Yes |
Audit Trail | No | Yes |
Electronic Signature | No | Yes |
On-board Printer | Yes | Yes |
LIS/HIS Integration | Yes | Yes |
