Product Description

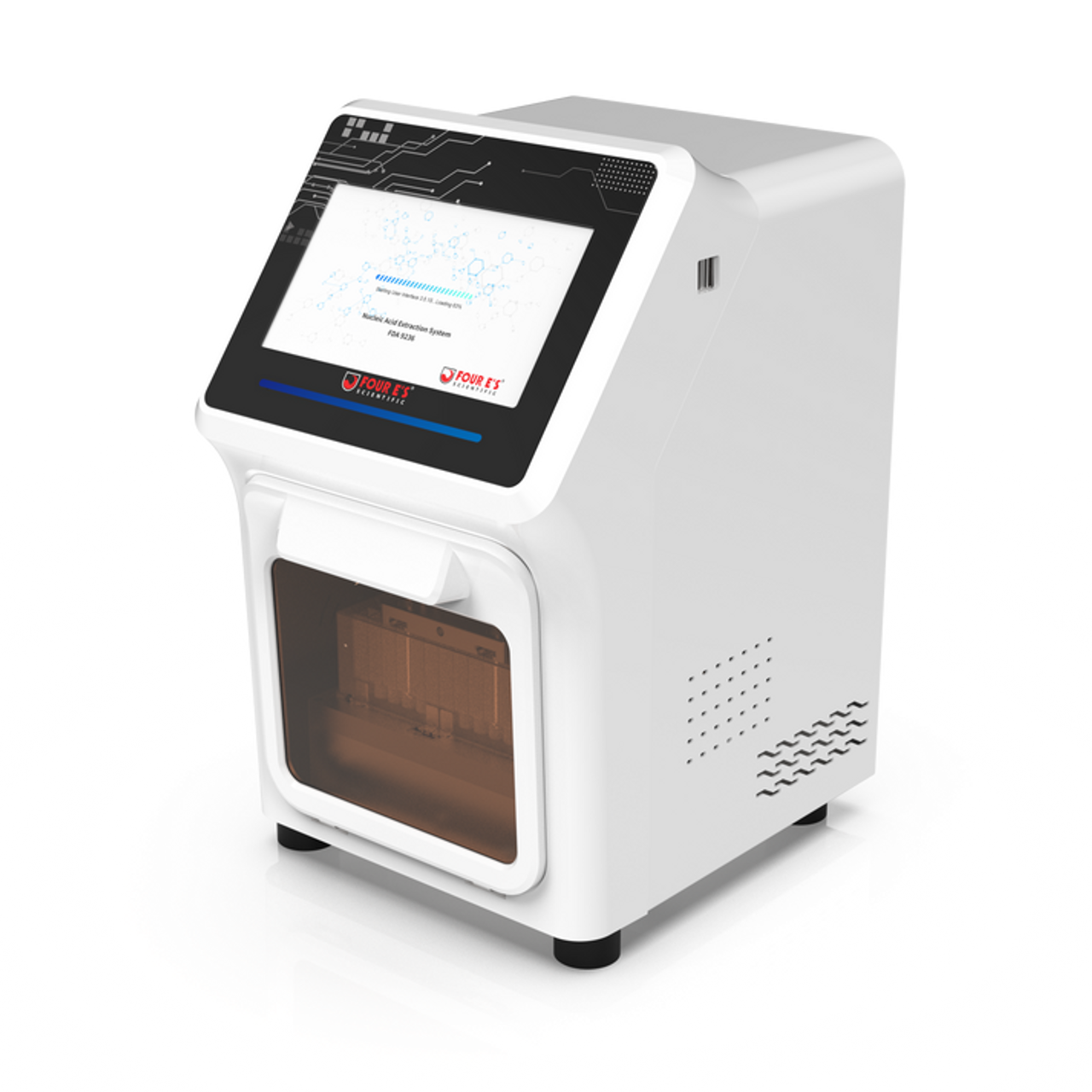

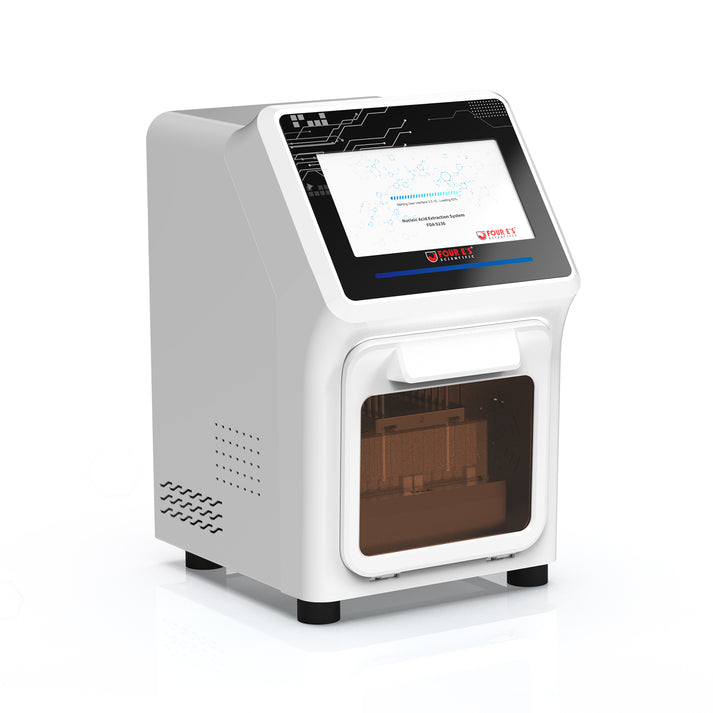

16 throughput Nucleic Acid Extractor
MultiEX 016 is an automated nucleic acid extraction and purification system which can process up to 16 samples per run. Utilizing Magnetic Bead Separation technology, the Nucleic Acid Extractor has the capability of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc.
MultiEX 016 features lightweight and compact design, user-friendly touchscreen interface and excellent mixing capability. It can be powered by a 24V external battery, enabling mobile on-site nucleic acid extraction. It is equipped with UV disinfection system to eliminate cross-contamination between runs.
Features
Specifications
| Model | MultiEX 016 |
| Processing volume | 50-1000ul |
| Throughput | 1-16 samples |
| Plate quantity | 1 |
| Plate type | 96-Deep Well Plate (conical/round bottom) |
| Processing time | 20min-40min/run (depending on reagent types and volumes) |
| Reagent type | Magnetic bead-based reagent kits (open system) |
| Program management | Create&Edit and Delete options available |
| Heating temperature | 37℃~125℃ |
| Temperature accuracy | 1.5℃ |
| Magnetic beads recovery rate | 98% |
| Inter-well purification variance | CV＜3% |
| Noise | ＜55db |
| Mixing intensities | Adjustable: 8 Levels |
| Data storage capacity | ＞500 programs |
| Dimension | 210mm*250mm*315mm |
| Display | 7-inch color touchscreen |
| Lighting | YES |
| UV sterilization | YES |
| Power supply | 24V DC，100-240V AC Adapter included(Operable with 24V 5A Battery) |
| Weight | 9KG |
| Extension ports | 2 USB ports |
